Problem 1 (20 points) Consider the electrical circuit shown below. Draw the circuit in s-domain and then Obtain the tran

Post by answerhappygod »

Problem 1 20 Points Consider The Electrical Circuit Shown Below Draw The Circuit In S Domain And Then Obtain The Tran 1
Problem 1 20 Points Consider The Electrical Circuit Shown Below Draw The Circuit In S Domain And Then Obtain The Tran 1 (21.29 KiB) Viewed 33 times

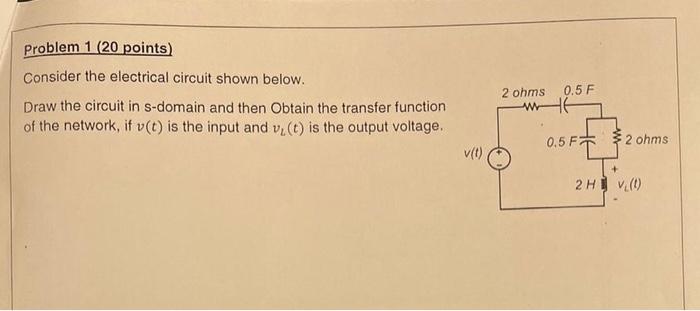

Problem 1 (20 points) Consider the electrical circuit shown below. Draw the circuit in s-domain and then Obtain the transfer function of the network, if v(t) is the input and v.() is the output voltage. 2 ohms 0.5 F 0.5 F2 ohms v(0) + 2Hv. (0)
