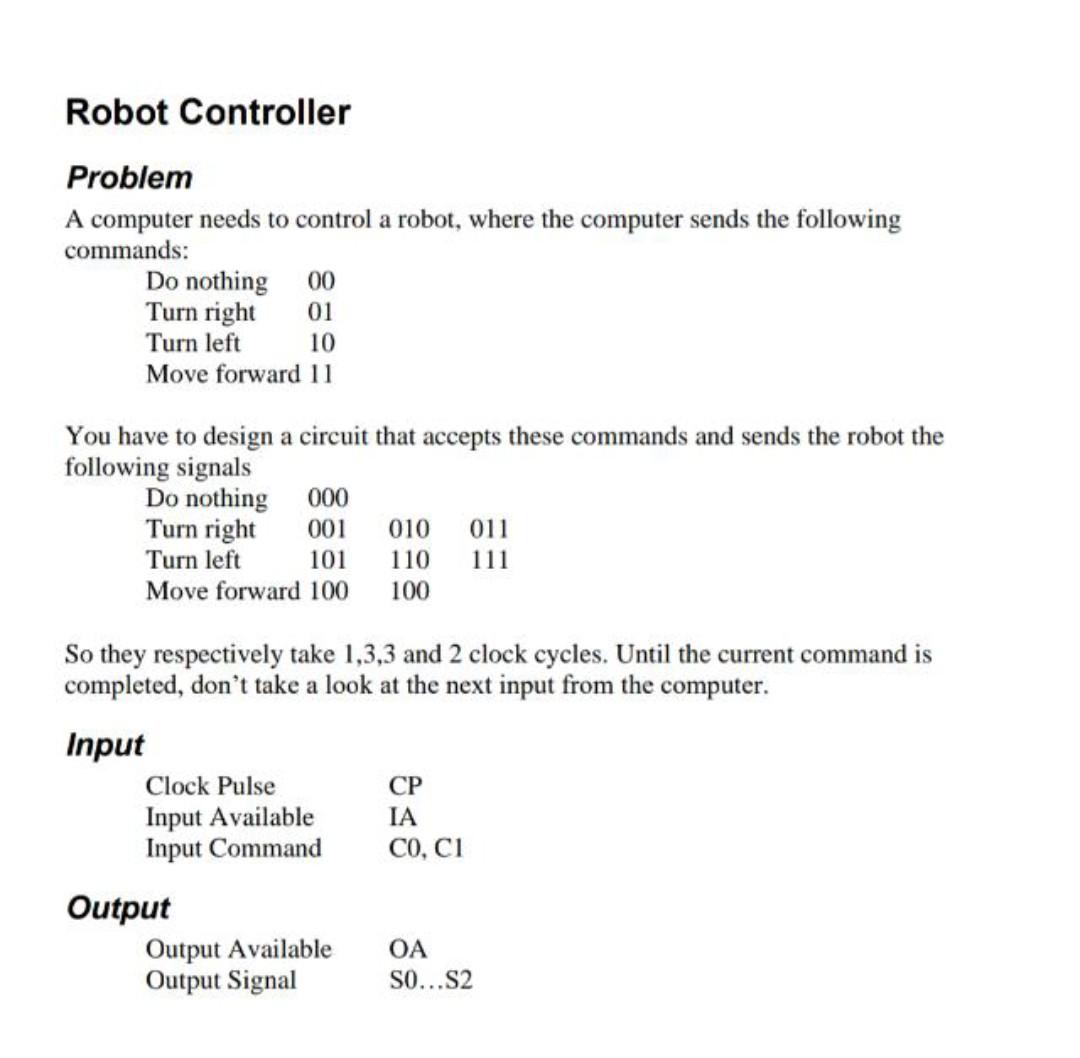

Robot Controller Problem A computer needs to control a robot, where the computer sends the following commands: Do nothing 00 Turn right 01 Turn left 10 Move forward 11 You have to design a circuit that accepts these commands and sends the robot the following signals Do nothing 000 Turn right 001 010 011 Turn left 101 110 111 Move forward 100 100 So they respectively take 1,3,3 and 2 clock cycles. Until the current command is completed, don't take a look at the next input from the computer. Input Clock Pulse CP Input Available IA Input Command CO, CI Output Output Available OA Output Signal SO... S2
