Problem 4 (30 points) Consider the system given below, R(S) C(5) K $2 + T's + K When this system is subjected to a unit-

[answerhappygod]

Problem 4 30 Points Consider The System Given Below R S C 5 K 2 T S K When This System Is Subjected To A Unit 1 (34.41 KiB) Viewed 55 times

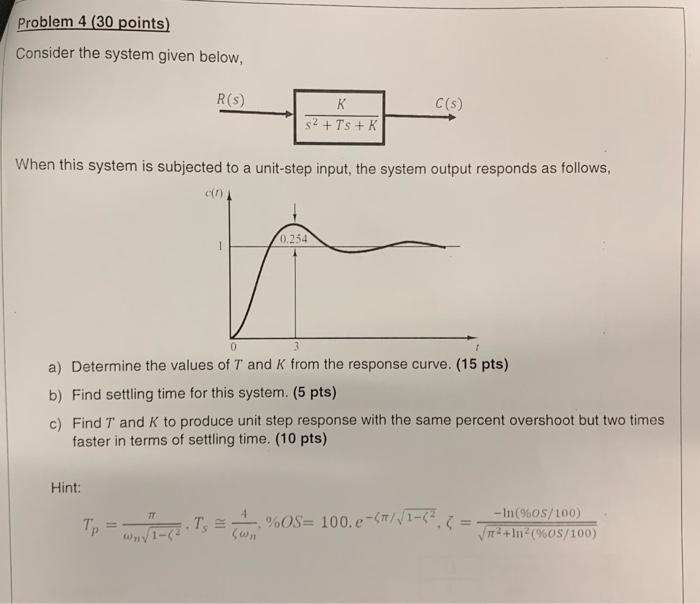

Problem 4 (30 points) Consider the system given below, R(S) C(5) K $2 + T's + K When this system is subjected to a unit-step input, the system output responds as follows, on 0.254 0 a) Determine the values of T and K from the response curve. (15 pts) b) Find settling time for this system. (5 pts) c) Find T and K to produce unit step response with the same percent overshoot but two times faster in terms of settling time. (10 pts) Hint: TT 1 Тр T. %OS= 100.e-(n/V1-77.7 ζω, --In (90S/100) V2+In+ (%OS/100) 1-10
