- Oblem 3 20 Points Consider The Block Diagram Seen Below 20 S R 3 C S 10 20 Ano 5 12 10 4s A Find The Equivalent Si 1 (33.37 KiB) Viewed 35 times
oblem 3 (20 points) Consider the block diagram seen below. 20 S R(3) C(s) 10 20 ano 5+12 10 4s a) Find the equivalent si
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
oblem 3 (20 points) Consider the block diagram seen below. 20 S R(3) C(s) 10 20 ano 5+12 10 4s a) Find the equivalent si

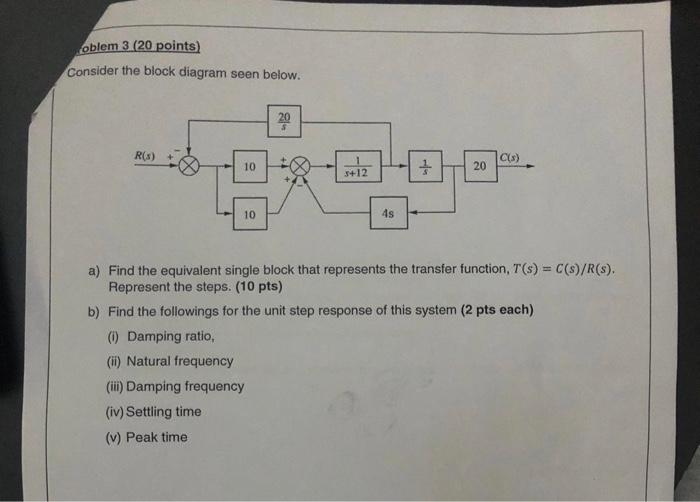

oblem 3 (20 points) Consider the block diagram seen below. 20 S R(3) C(s) 10 20 ano 5+12 10 4s a) Find the equivalent single block that represents the transfer function, T(s) = C(s)/R(s). Represent the steps. (10 pts) b) Find the followings for the unit step response of this system (2 pts each) (0) Damping ratio, (i) Natural frequency (ii) Damping frequency (iv) Settling time (v) Peak time
