A reliability system consists of 6 components as shown in the following diagram. N 5 1 3 6 4 There are two types of comp

Post by answerhappygod »

A Reliability System Consists Of 6 Components As Shown In The Following Diagram N 5 1 3 6 4 There Are Two Types Of Comp 1
A Reliability System Consists Of 6 Components As Shown In The Following Diagram N 5 1 3 6 4 There Are Two Types Of Comp 1 (49.29 KiB) Viewed 34 times

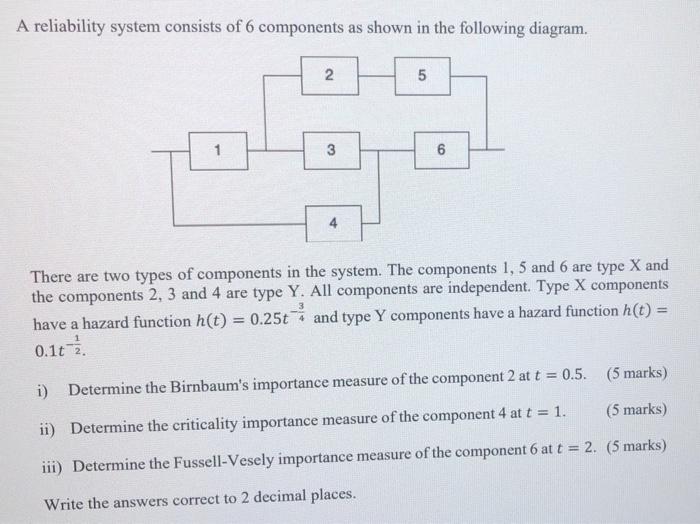

A reliability system consists of 6 components as shown in the following diagram. N 5 1 3 6 4 There are two types of components in the system. The components 1, 5 and 6 are type X and the components 2, 3 and 4 are type Y. All components are independent. Type X components have a hazard function h(t) = 0.25t and type Y components have a hazard function h(t) = Y 0.1t i) Determine the Birnbaum's importance measure of the component 2 at t = 0.5. (5 marks) ii) Determine the criticality importance measure of the component 4 at t = 1. (5 marks) iii) Determine the Fussell-Vesely importance measure of the component 6 at t = 2. (5 marks) Write the answers correct to 2 decimal places.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
