22 Problem 2 (30 points) Consider the network shown below. The input signal is v(t) and the output signal is the voltage

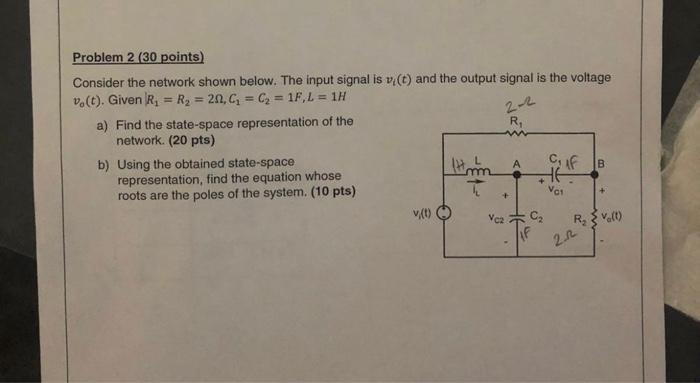

22 Problem 2 (30 points) Consider the network shown below. The input signal is v(t) and the output signal is the voltage v.(t). Given R = R2 = 20,6 = C2 = 1F, L = 1H a) Find the state-space representation of the R, network. (20 pts) b) Using the obtained state-space representation, find the equation whose roots are the poles of the system. (10 pts) T (0) Hab A CF B + Vai + + 카 'ct ca R₂ Zvol 2.1
