[I.] Use MATLAB Simulink to simulate the following de motor drive. Full bridge SCR rectifier circuit (a = 75°) DC Motor:

Post by answerhappygod »

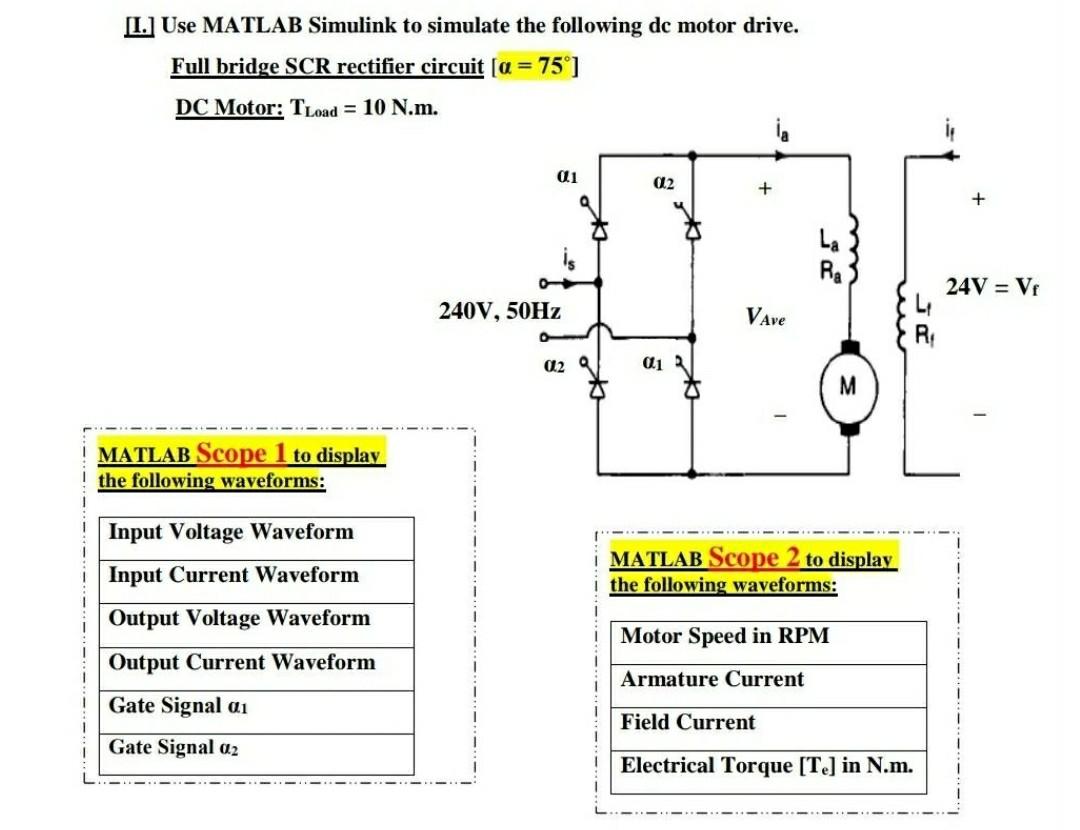

I Use Matlab Simulink To Simulate The Following De Motor Drive Full Bridge Scr Rectifier Circuit A 75 Dc Motor 1
I Use Matlab Simulink To Simulate The Following De Motor Drive Full Bridge Scr Rectifier Circuit A 75 Dc Motor 1 (82.93 KiB) Viewed 42 times
[I.] Use MATLAB Simulink to simulate the following de motor drive. Full bridge SCR rectifier circuit (a = 75°) DC Motor: Tload = 10 N.m. ia 01 012 + + Ra 24V = VE 240V, 50Hz VAve 44 RI 012 a 012 M MATLAB Scope 1 to display the following waveforms: Input Voltage Waveform Input Current Waveform MATLAB Scope 2 to display the following waveforms: Output Voltage Waveform Output Current Waveform Motor Speed in RPM Armature Current Gate Signal di Field Current Gate Signal 02 Electrical Torque [T] in N.m.
