Q1 The emitter-stabilized bias configuration of Figure Q2 has the following specifications: Ica = XI I = 4.4 mA Vcea = 1

Post by answerhappygod »

Q1 The Emitter Stabilized Bias Configuration Of Figure Q2 Has The Following Specifications Ica Xi I 4 4 Ma Vcea 1 1
Q1 The Emitter Stabilized Bias Configuration Of Figure Q2 Has The Following Specifications Ica Xi I 4 4 Ma Vcea 1 1 (20.09 KiB) Viewed 36 times

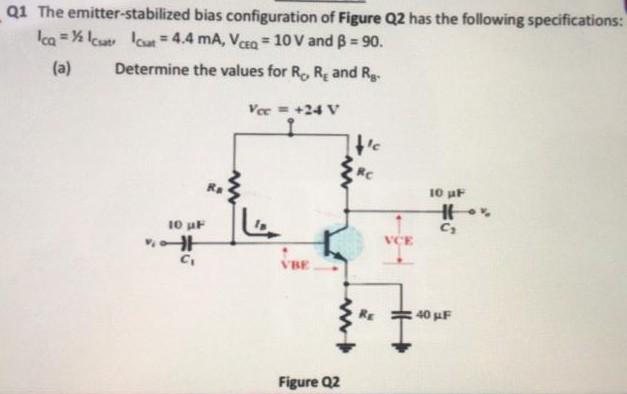

Q1 The emitter-stabilized bias configuration of Figure Q2 has the following specifications: Ica = XI I = 4.4 mA Vcea = 10 V and B = 90. (a) Determine the values for R., Rę and Rg. Vo = +24 V Hic 10 F 10 F VE C VCE VBE 40 F Figure Q2
