3. (a) The parameters of the transistor in Figure Q3(a) are: Ves = 0.65 V and B = 80. 15 V 10 kg 400 kn @ 150 kαξ 5 ΚΩ I

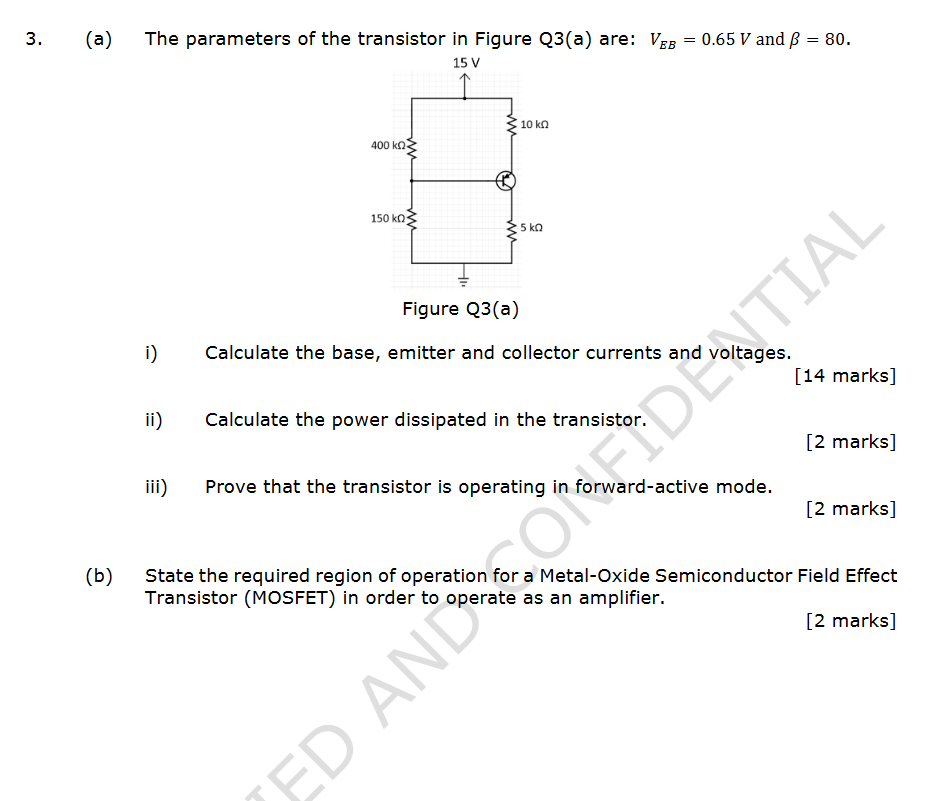

3. (a) The parameters of the transistor in Figure Q3(a) are: Ves = 0.65 V and B = 80. 15 V 10 kg 400 kn @ 150 kαξ 5 ΚΩ I: Figure Q3(a) TIAL i) Calculate the base, emitter and collector currents and voltages. [14 marks] ii) Calculate the power dissipated in the transistor. [2 marks] iii) Prove that the transistor is operating in forward-active mode. [2 marks] (b) State the required region of operation for a Metal-Oxide Semiconductor Field Effect Transistor (MOSFET) in order to operate as an amplifier. [2 marks] DAA
