write a testbench in Verilog for a combinations circuit f = A!BCD and display your results for A,B,C,D,f CLK etc. f = A!

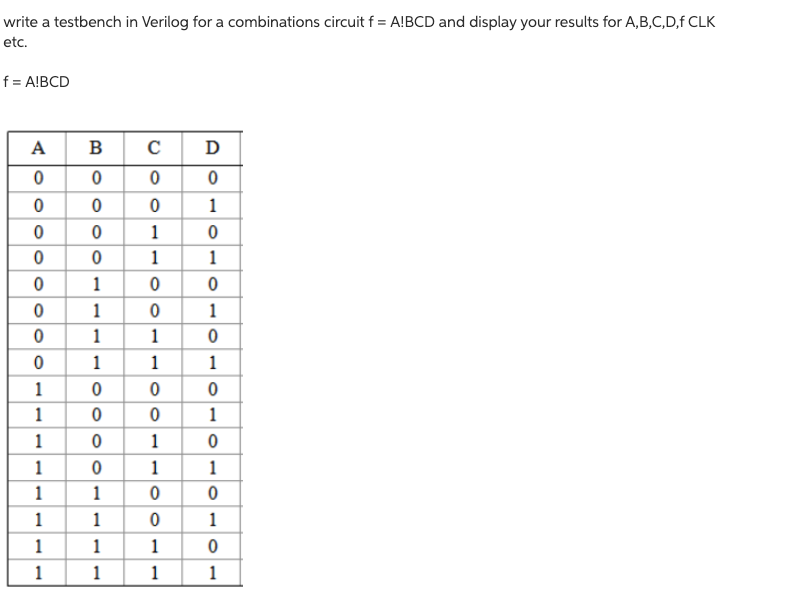

write a testbench in Verilog for a combinations circuit f = A!BCD and display your results for A,B,C,D,f CLK etc. f = A!BCD A 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 с 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 D 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
