4. (a) The input supply for CONVERTER A in Fig. Q4a is 200Vdc. Given the information as in Table Q4a, answer the followi

Post by answerhappygod »

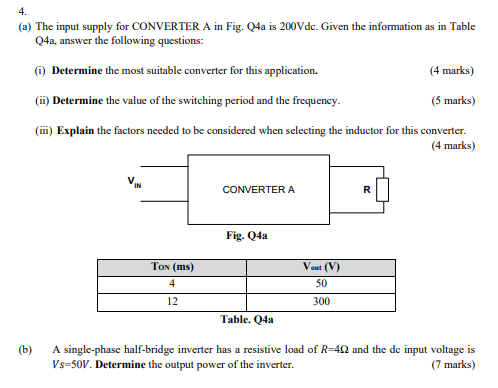

4 A The Input Supply For Converter A In Fig Q4a Is 200vdc Given The Information As In Table Q4a Answer The Followi 1
4 A The Input Supply For Converter A In Fig Q4a Is 200vdc Given The Information As In Table Q4a Answer The Followi 1 (42.29 KiB) Viewed 37 times
4. (a) The input supply for CONVERTER A in Fig. Q4a is 200Vdc. Given the information as in Table Q4a, answer the following questions: (1) Determine the most suitable converter for this application. (4 marks) (1) Determine the value of the switching period and the frequency. (5 marks) (i) Explain the factors needed to be considered when selecting the inductor for this converter. (4 marks) IN CONVERTER A R Fig. 04a Ton (ms) 4 Vout (V) 50 300 12 Table. Q4a (b) A single-phase half-bridge inverter has a resistive load of R=40 and the dc input voltage is Vs=50V. Determine the output power of the inverter. (7 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
