2. 2 (a) For the thyristor circuit shown in Fig. Q2a, the SCR has a latching current of 18mA and is fixed by a pulse of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. 2 (a) For the thyristor circuit shown in Fig. Q2a, the SCR has a latching current of 18mA and is fixed by a pulse of

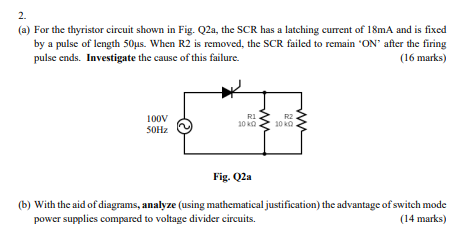

2. 2 (a) For the thyristor circuit shown in Fig. Q2a, the SCR has a latching current of 18mA and is fixed by a pulse of length 50us. When R2 is removed, the SCR failed to remain 'ON' after the firing pulse ends. Investigate the cause of this failure. (16 marks) w 100V 50Hz Ri 100 R2 100 w Fig. 02a (b) With the aid of diagrams, analyze (using mathematical justification) the advantage of switch mode power supplies compared to voltage divider circuits. (14 marks)
