A 10022 load is connected to a peak supply of 300V through a half controlled half wave rectifier. The load power is to b

Post by answerhappygod »

A 10022 Load Is Connected To A Peak Supply Of 300v Through A Half Controlled Half Wave Rectifier The Load Power Is To B 1
A 10022 Load Is Connected To A Peak Supply Of 300v Through A Half Controlled Half Wave Rectifier The Load Power Is To B 1 (52.01 KiB) Viewed 39 times

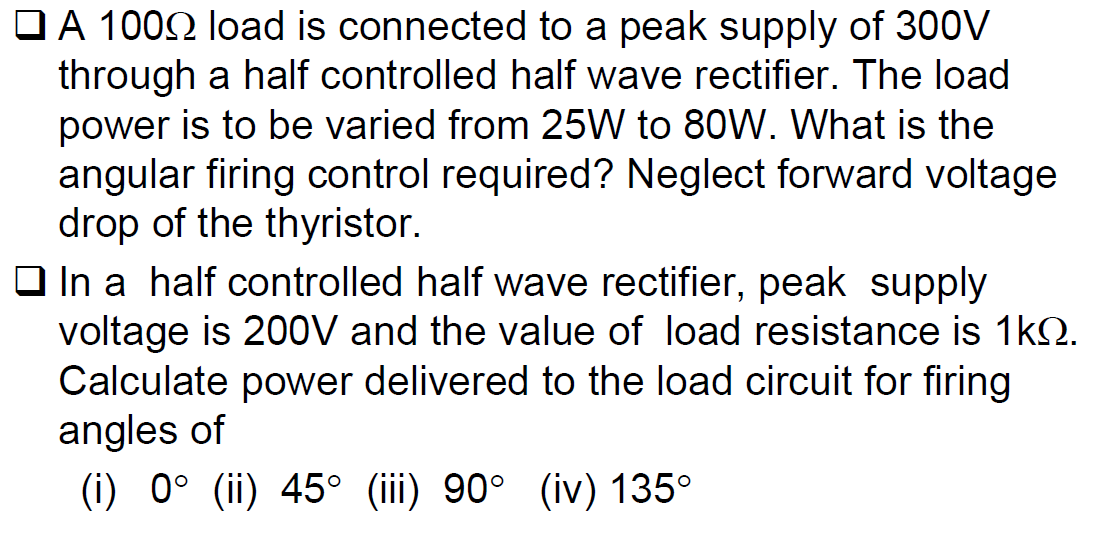

A 10022 load is connected to a peak supply of 300V through a half controlled half wave rectifier. The load power is to be varied from 25W to 80W. What is the angular firing control required? Neglect forward voltage drop of the thyristor. In a half controlled half wave rectifier, peak supply voltage is 200V and the value of load resistance is 1k2. Calculate power delivered to the load circuit for firing angles of (i) 0° (ii) 45° (iii) 90° (iv) 135°
