QUESTION: Implement the TRUTH TABLE of the following state machine and DRAW the SCHEMATIC CIRCUIT

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

QUESTION: Implement the TRUTH TABLE of the following state machine and DRAW the SCHEMATIC CIRCUIT

Post by answerhappygod »

QUESTION: Implement the TRUTH TABLE of the following state
machine and DRAW the SCHEMATIC CIRCUIT
Question Implement The Truth Table Of The Following State Machine And Draw The Schematic Circuit 1
Question Implement The Truth Table Of The Following State Machine And Draw The Schematic Circuit 1 (423.44 KiB) Viewed 25 times

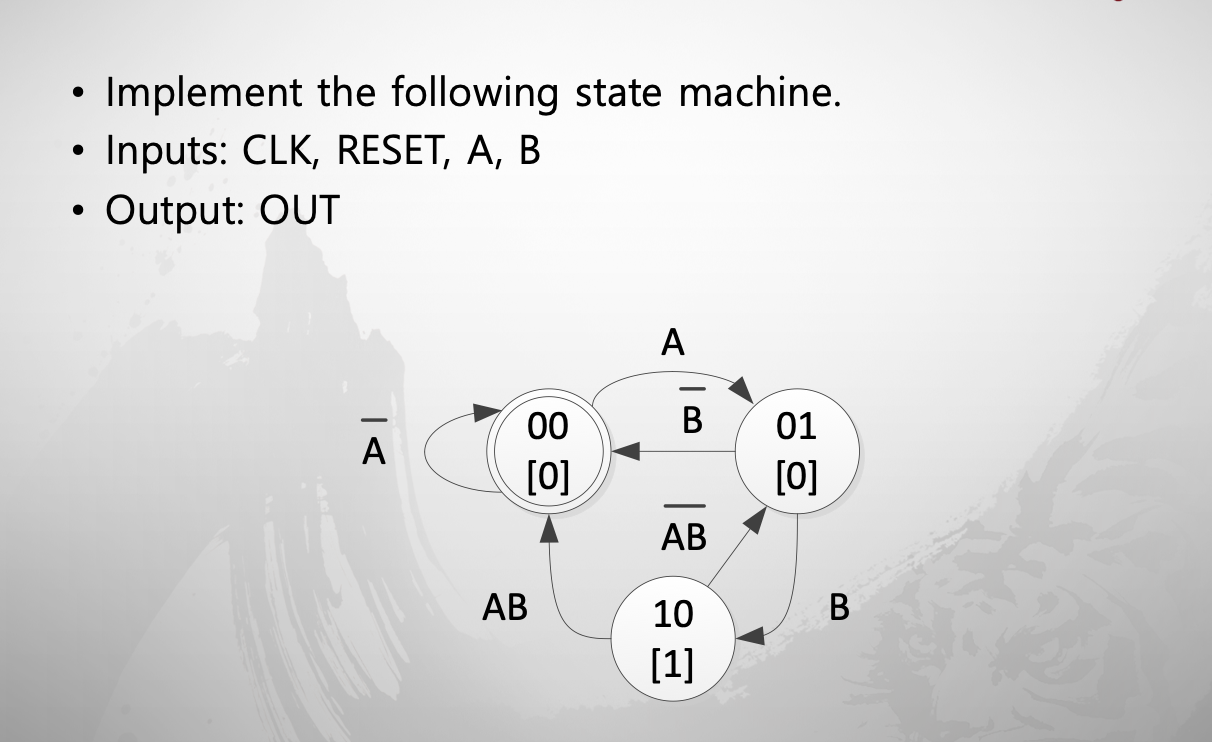

• Implement the following state machine. Inputs: CLK, RESET, A, B Output: OUT . A B 1A 00 [O] 01 [O] AB ( AB 10 B [1]
