Design a 16-bit Comparator with maximum of 4 bits of Lookahead. Propagation of signals is from LSB to MSB. A1 B1 ΑΟ BO (
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Design a 16-bit Comparator with maximum of 4 bits of Lookahead. Propagation of signals is from LSB to MSB. A1 B1 ΑΟ BO (

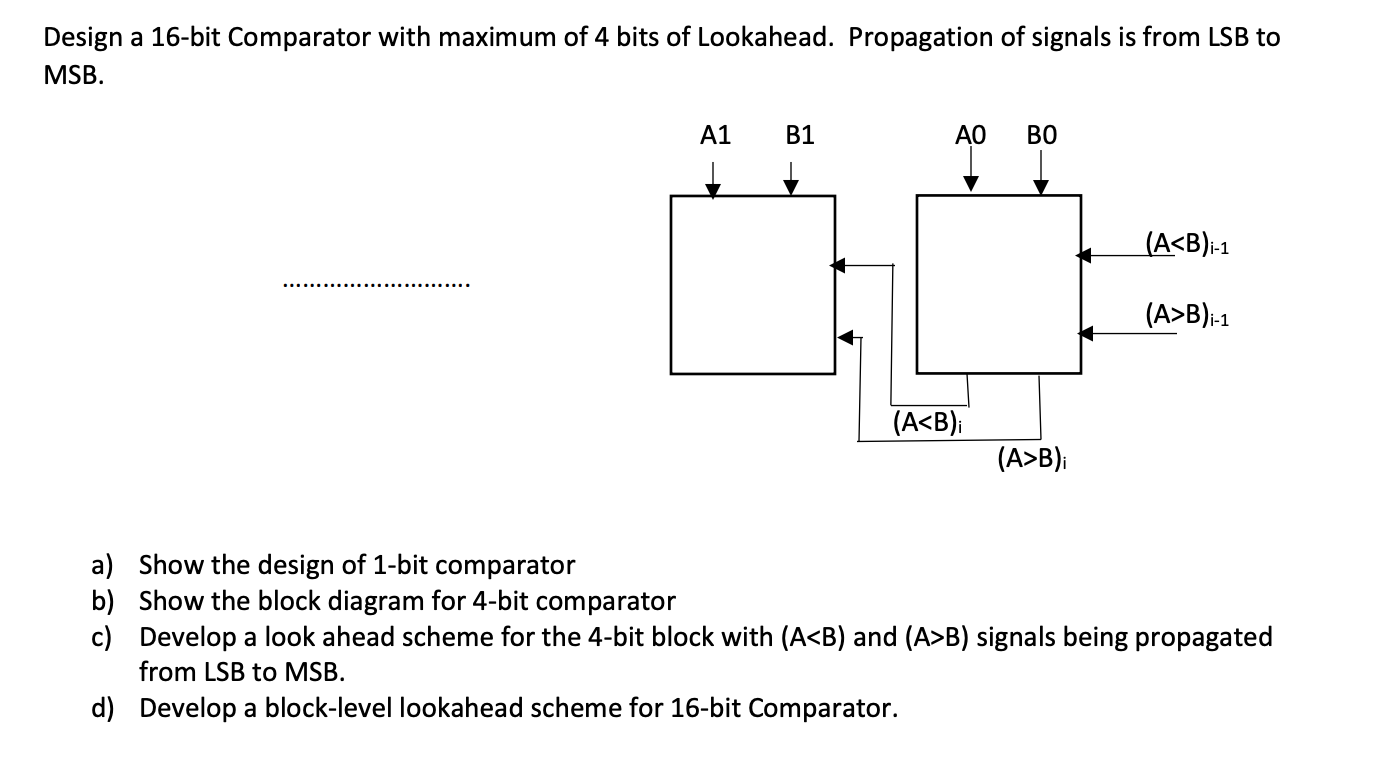

Design a 16-bit Comparator with maximum of 4 bits of Lookahead. Propagation of signals is from LSB to MSB. A1 B1 ΑΟ BO (A<B)i-1 (A>B)-1 (A<B) (A>B) a) Show the design of 1-bit comparator b) Show the block diagram for 4-bit comparator c) Develop a look ahead scheme for the 4-bit block with (A<B) and (A>B) signals being propagated from LSB to MSB. d) Develop a block-level lookahead scheme for 16-bit Comparator.
