Asap Matlab Code Using Apps Designer 1 (109.72 KiB) Viewed 71 times

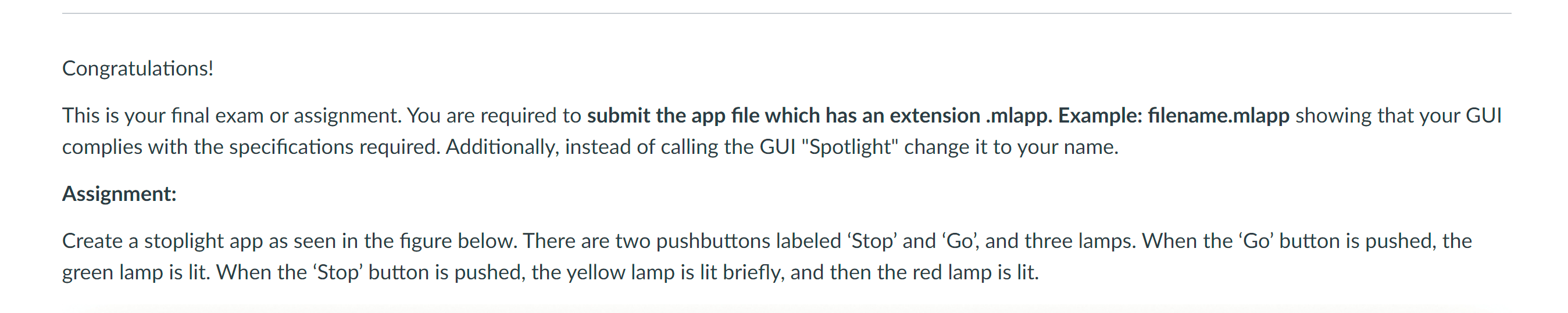

Congratulations! This is your final exam or assignment. You are required to submit the app file which has an extension .mlapp. Example: filename.mlapp showing that your GUI complies with the specifications required. Additionally, instead of calling the GUI "Spotlight" change it to your name. Assignment: Create a stoplight app as seen in the figure below. There are two pushbuttons labeled 'Stop' and 'Go', and three lamps. When the 'Go' button is pushed, the green lamp is lit. When the 'Stop' button is pushed, the yellow lamp is lit briefly, and then the red lamp is lit.
NOTE: To practice, open one of the tutorial app examples provided in MATLAB by clicking on the "Apps" tab then choose the first icon on the top left "App Designer." Each example will walk you through, step by step, on how to create an app. To create an app file with an extension .mlapp, do the following: 1) Click on the icon called "Share" and choose "MATLAB app" A new window will pop up. It contains the name of the file on the left and on the right has the path or directory where the file will be stored. You can change either one or both as you prefer. Once you finalized the directory where you want the app file to be stored. 2) Click on the button labeled "Package" 3) Click on the link that says "open output folder." That will open the folder containing the app file you need to upload in Canvas.
Stoplight Stop Go
