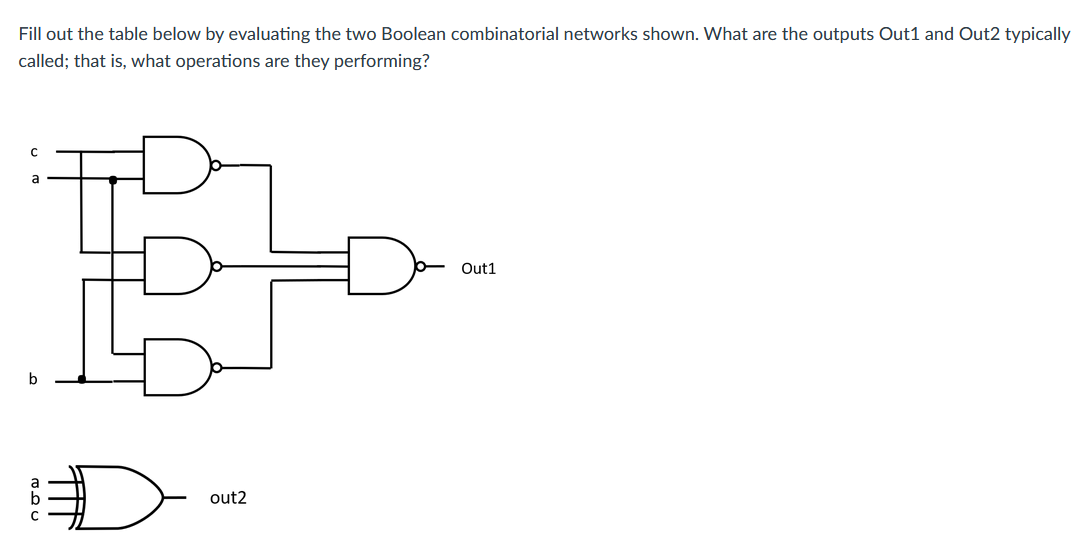

Fill out the table below by evaluating the two Boolean combinatorial networks shown. What are the outputs Out1 and Out2 typically called; that is, what operations are they performing? a Out1 b D out2

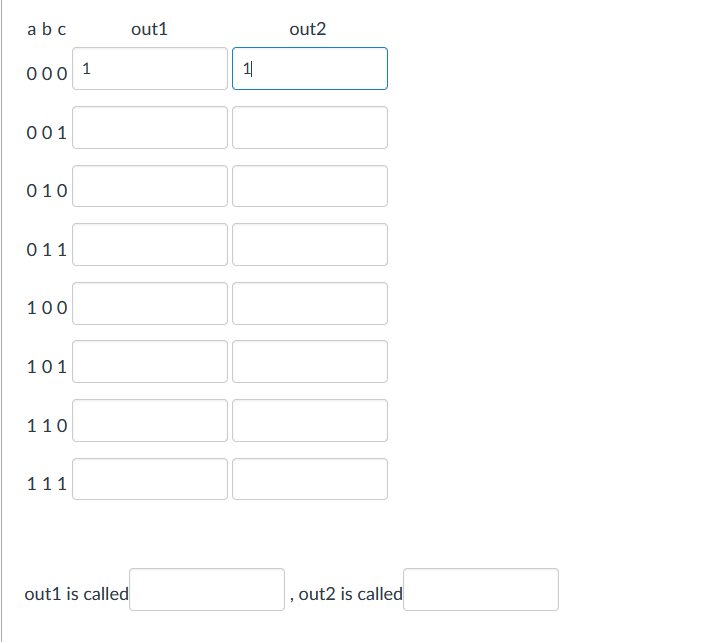

a b c out1 out2 000 1 1 001 010 011 100 101 110 111 out1 is called , out2 is called
