In the shift register shown below: If the Serial Data in = 1101 and the initial stage output is 0011 (QA QB Qc Qo). Afte

[answerhappygod]

In The Shift Register Shown Below If The Serial Data In 1101 And The Initial Stage Output Is 0011 Qa Qb Qc Qo Afte 1 (69.33 KiB) Viewed 22 times

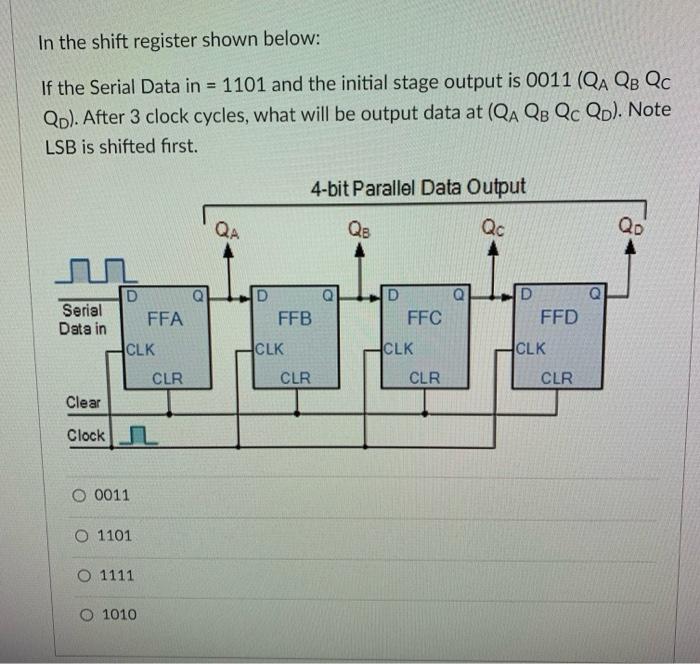

In the shift register shown below: If the Serial Data in = 1101 and the initial stage output is 0011 (QA QB Qc Qo). After 3 clock cycles, what will be output data at (QA QB Qc Qo). Note LSB is shifted first. 4-bit Parallel Data Output QA QB Qc QD Serial Data in D FFA D FFB D FFC D FFD CLK CLK CLK CLK CLR CLR CLR CLR Clear Clock O 0011 O 1101 O 1111 01010
