3. (25 Points) Consider the single switch VLAN in Figure 3, and assume an external router is connected to switch port 1.

[answerhappygod]

3 25 Points Consider The Single Switch Vlan In Figure 3 And Assume An External Router Is Connected To Switch Port 1 1 (98.21 KiB) Viewed 60 times

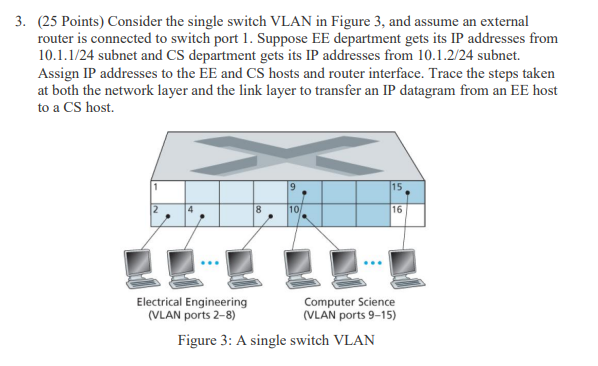

3. (25 Points) Consider the single switch VLAN in Figure 3, and assume an external router is connected to switch port 1. Suppose EE department gets its IP addresses from 10.1.1/24 subnet and CS department gets its IP addresses from 10.1.2/24 subnet. Assign IP addresses to the EE and CS hosts and router interface. Trace the steps taken at both the network layer and the link layer to transfer an IP datagram from an EE host to a CS host 9 8 10 16 Electrical Engineering Computer Science (VLAN ports 2-8) (VLAN ports 9-15) Figure 3: A single switch VLAN
