Time left 2:08:02 The following tasks are required to produce widgets Task Time Immediate (seconds) Predecessor A 30 Non

[answerhappygod]

Time Left 2 08 02 The Following Tasks Are Required To Produce Widgets Task Time Immediate Seconds Predecessor A 30 Non 1 (37.01 KiB) Viewed 54 times

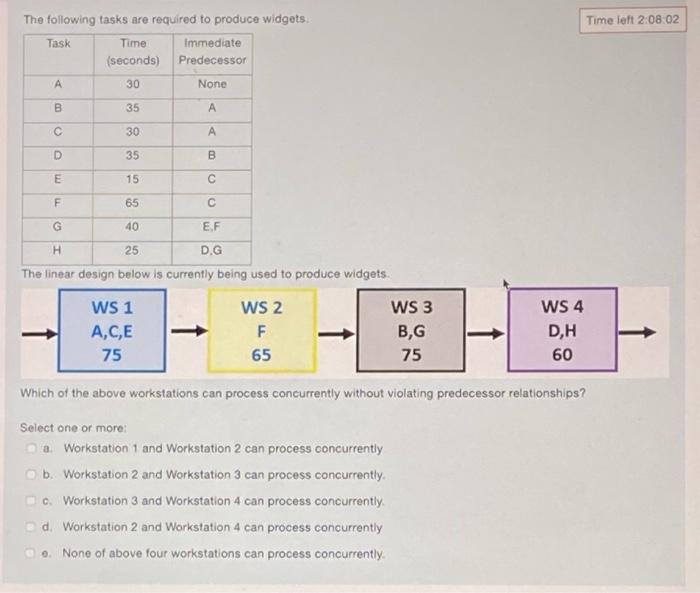

Time left 2:08:02 The following tasks are required to produce widgets Task Time Immediate (seconds) Predecessor A 30 None 00 35 А c 30 А D 35 B E 15 С F 65 С G 40 EF H 25 D.G The linear design below is currently being used to produce widgets. WS 1 WS 2 WS 3 A,C,E F B,G 75 WS 4 DH 60 65 75 Which of the above workstations can process concurrently without violating predecessor relationships? Select one or more: eta Workstation 1 and Workstation 2 can process concurrently b. Workstation 2 and Workstation 3 can process concurrently Workstation 3 and Workstation 4 can process concurrently d Workstation 2 and Workstation 4 can process concurrently . None of above four workstations can process concurrently
