An impulse resistance divider has a high voltage arm with a 5000-ohm resistance and the L.V. arm with a 5-ohm resistance

Post by answerhappygod »

An Impulse Resistance Divider Has A High Voltage Arm With A 5000 Ohm Resistance And The L V Arm With A 5 Ohm Resistance 1

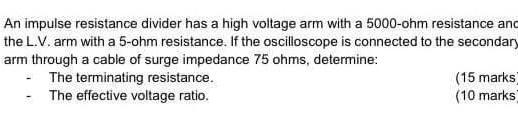

An Impulse Resistance Divider Has A High Voltage Arm With A 5000 Ohm Resistance And The L V Arm With A 5 Ohm Resistance 1 (14.14 KiB) Viewed 38 times
An impulse resistance divider has a high voltage arm with a 5000-ohm resistance and the L.V. arm with a 5-ohm resistance. If the oscilloscope is connected to the secondary arm through a cable of surge impedance 75 ohms, determine: The terminating resistance. (15 marks - The effective voltage ratio. (10 marks
