Question 1: 8 - Tests are performed on a single phase, 10 KVA, 2200/220 V, 60 Hz transformer and the following results a

Post by answerhappygod »

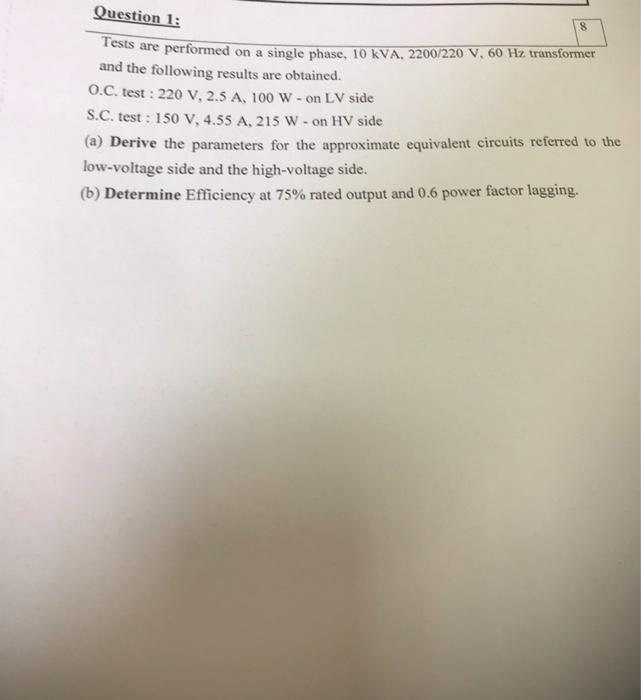

Question 1 8 Tests Are Performed On A Single Phase 10 Kva 2200 220 V 60 Hz Transformer And The Following Results A 1
Question 1 8 Tests Are Performed On A Single Phase 10 Kva 2200 220 V 60 Hz Transformer And The Following Results A 1 (27.79 KiB) Viewed 58 times
Question 1: 8 - Tests are performed on a single phase, 10 KVA, 2200/220 V, 60 Hz transformer and the following results are obtained. O.C. test : 220 V, 2.5 A, 100 W-on LV side S.C. test : 150 V, 4.55 A, 215 W - on HV side (a) Derive the parameters for the approximate equivalent circuits referred to the low-voltage side and the high-voltage side. (b) Determine Efficiency at 75% rated output and 0.6 power factor lagging.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
