Q.5 A 1000m track circuit is modeled as ten sections each 100m long. The resistance of 100m of one rail may be taken to
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q.5 A 1000m track circuit is modeled as ten sections each 100m long. The resistance of 100m of one rail may be taken to

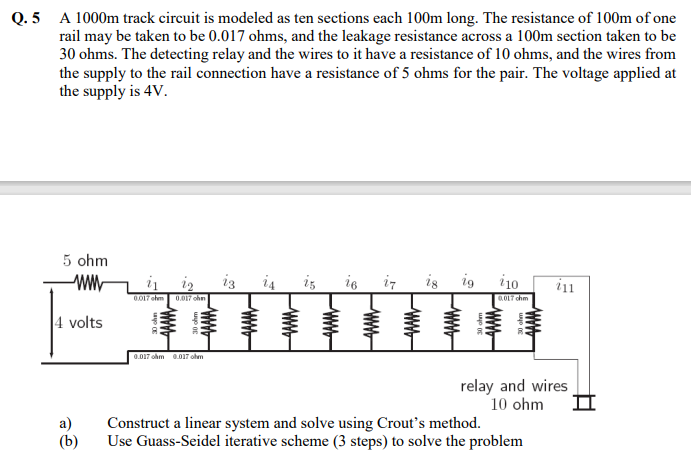

Q.5 A 1000m track circuit is modeled as ten sections each 100m long. The resistance of 100m of one rail may be taken to be 0.017 ohms, and the leakage resistance across a 100m section taken to be 30 ohms. The detecting relay and the wires to it have a resistance of 10 ohms, and the wires from the supply to the rail connection have a resistance of 5 ohms for the pair. The voltage applied at the supply is 4V. 5 ohm WW ܕܐ 1ܐ i3 14 is 26 17 is ig 110 111 0.017cm 0.017chn 0.017 ohm 4 volts w 30 ohn AM АДАМ 30 ohm -4AM AAAM www AAWY AAAM 30 ohm -AW 30 ohm AM 0.017 ohm 0.017 olen relay and wires 10 ohm IT Construct a linear system and solve using Crout's method. Use Guass-Seidel iterative scheme (3 steps) to solve the problem a) (b)
