Question A truss structure with 4 members is shown in Figure 1. The structure is subject to an inclined downward force P

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question A truss structure with 4 members is shown in Figure 1. The structure is subject to an inclined downward force P

Post by answerhappygod »

Question A Truss Structure With 4 Members Is Shown In Figure 1 The Structure Is Subject To An Inclined Downward Force P 1
Question A Truss Structure With 4 Members Is Shown In Figure 1 The Structure Is Subject To An Inclined Downward Force P 1 (166.11 KiB) Viewed 87 times

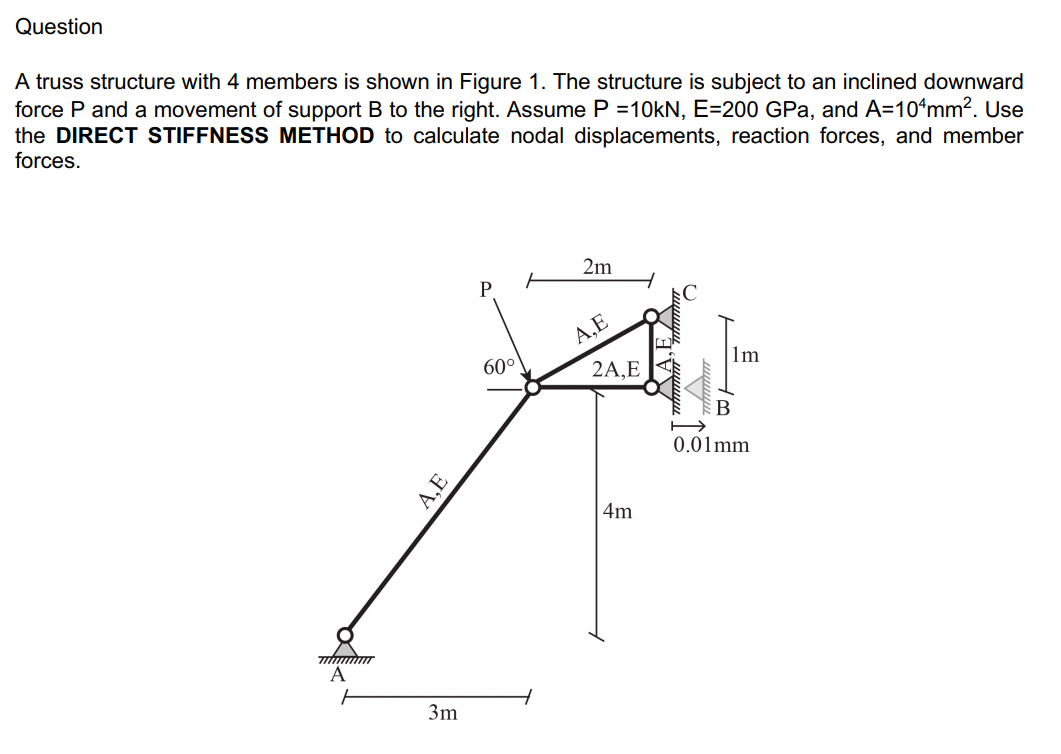

Question A truss structure with 4 members is shown in Figure 1. The structure is subject to an inclined downward force P and a movement of support B to the right. Assume P =10kN, E=200 GPa, and A=104mm2. Use the DIRECT STIFFNESS METHOD to calculate nodal displacements, reaction forces, and member forces. 2m P A,E 1m 60° 2A,E B 0.01mm A,E 4m TITUT 3m
