PE A particle accelerator uses electromagnetic fields to pull or push charged particle to very high speeds and energies.

[answerhappygod]

Pe A Particle Accelerator Uses Electromagnetic Fields To Pull Or Push Charged Particle To Very High Speeds And Energies 1 (28.71 KiB) Viewed 67 times

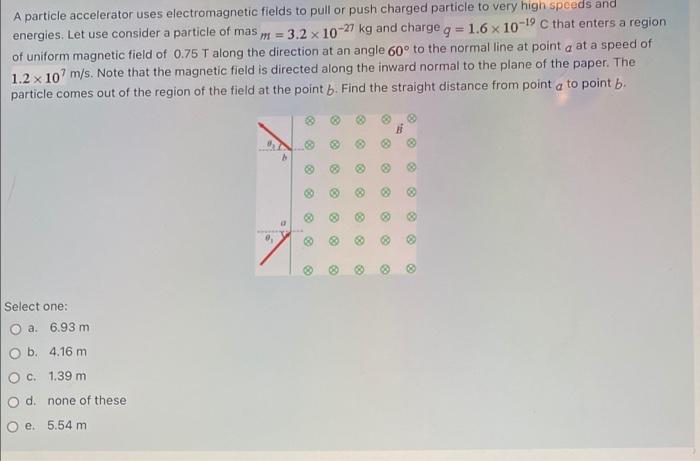

PE A particle accelerator uses electromagnetic fields to pull or push charged particle to very high speeds and energies. Let use consider a particle of mas 3.2 x 10-27 kg and charge g = 1.6 x 10-19 C that enters a region of uniform magnetic field of 0.75 T along the direction at an angle 60° to the normal line at point a at a speed of 1.2 x 107 m/s. Note that the magnetic field is directed along the inward normal to the plane of the paper. The particle comes out of the region of the field at the point b. Find the straight distance from point a to point b. > 09 9 8 8 2 Select one: O a. 6.93 m O b. 4.16 m O c. 1.39 m d. none of these e. 5.54 m
