Given the wiring diagram shown with the following values: R1 = 2.70 kn, R2 = 3.90 kN, R3 = 8.20 kA R4 = 8.20 kN ,R5 = 4.

Post by answerhappygod »

Given The Wiring Diagram Shown With The Following Values R1 2 70 Kn R2 3 90 Kn R3 8 20 Ka R4 8 20 Kn R5 4 1
Given The Wiring Diagram Shown With The Following Values R1 2 70 Kn R2 3 90 Kn R3 8 20 Ka R4 8 20 Kn R5 4 1 (42.83 KiB) Viewed 78 times

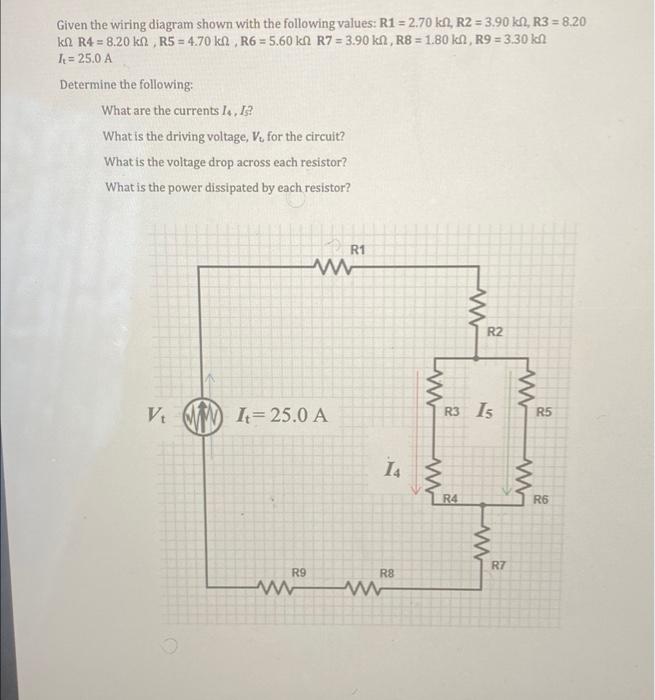

Given the wiring diagram shown with the following values: R1 = 2.70 kn, R2 = 3.90 kN, R3 = 8.20 kA R4 = 8.20 kN ,R5 = 4.70 kN , R6 = 5.60 kN R7 = 3.90 kN, R8 = 1.80 kN, R9 = 3.30 kn 11 = 25.0 A Determine the following: What are the currents 1,12 What is the driving voltage, V, for the circuit? What is the voltage drop across each resistor? What is the power dissipated by each resistor? R1 w w R2 L w w Vt W) 11= 25.0 A R3 15 R5 IA R4 LW R6 ur R7 R9 R8 w
