PRACTICE IT Use the worked example above to help you solve this problem. Four capacitors are connected in series with a

Post by answerhappygod »

Practice It Use The Worked Example Above To Help You Solve This Problem Four Capacitors Are Connected In Series With A 1
Practice It Use The Worked Example Above To Help You Solve This Problem Four Capacitors Are Connected In Series With A 1 (93.79 KiB) Viewed 64 times

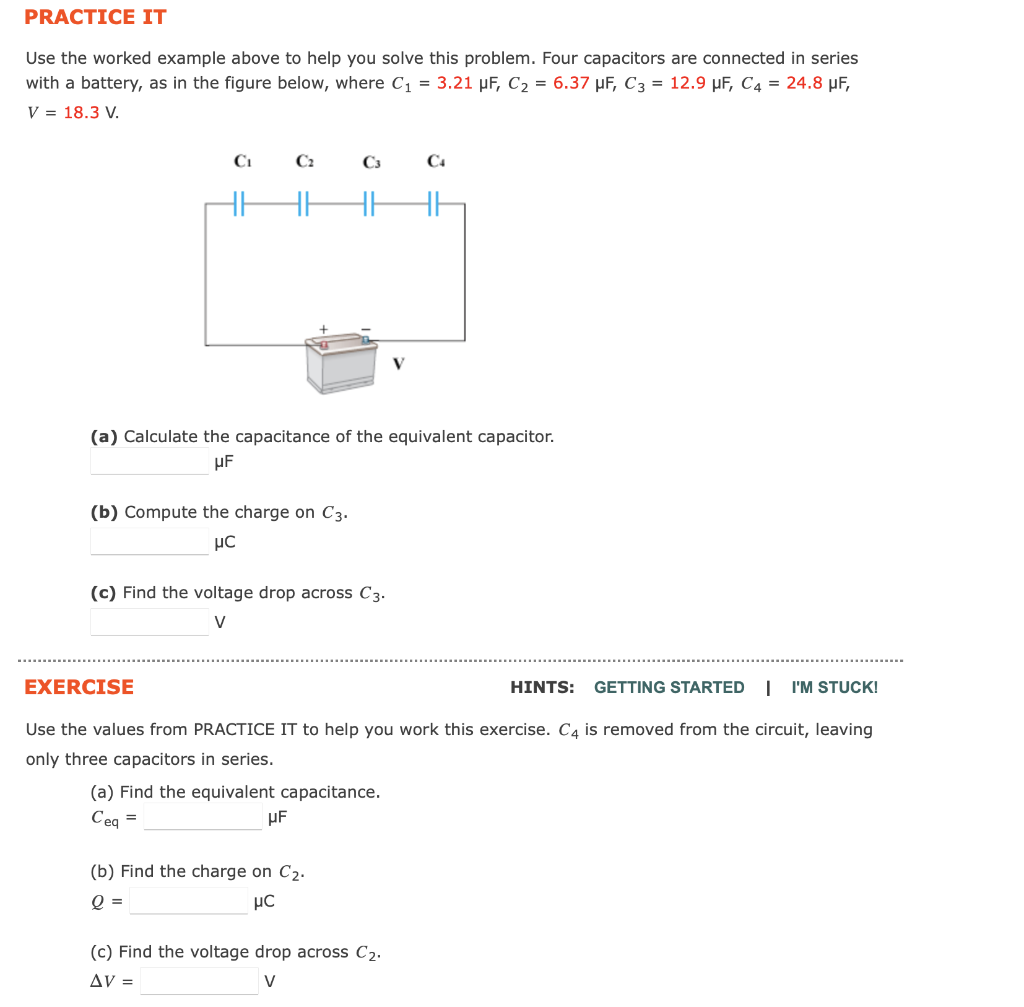

PRACTICE IT Use the worked example above to help you solve this problem. Four capacitors are connected in series with a battery, as in the figure below, where C1 = 3.21 pF, C2 = 6.37 uF, C3 = 12.9 MF, C4 = 24.8 uF, V = 18.3 V. С. C2 C3 C4 HH HH (a) Calculate the capacitance of the equivalent capacitor. UF (b) Compute the charge on C3. PC (c) Find the voltage drop across C3. V EXERCISE HINTS: GETTING STARTED II'M STUCK! Use the values from PRACTICE IT to help you work this exercise. C4 is removed from the circuit, leaving only three capacitors in series. (a) Find the equivalent capacitance. Ceq = F (b) Find the charge on C2 0 = pc (c) Find the voltage drop across C2. AV = V
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
