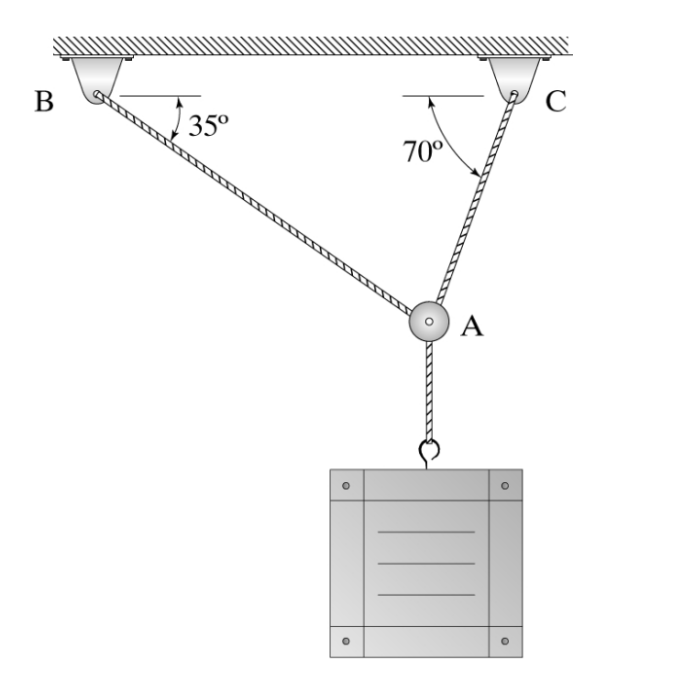

A 160-kg crate hangs from ropes as shown in figure below. Find
the tension in ropes AB and AC.
A 160 Kg Crate Hangs From Ropes As Shown In Figure Below Find The Tension In Ropes Ab And Ac Options Question 46 Opti 1 (61.26 KiB) Viewed 73 times
Options:
Question 46 options:
Tension on Cable AB is TAB = 116
N
Tension on Cable AC is TAC = 431 N
Tension on Cable AB is TAB = 556
N
Tension on Cable AC is TAC = 1331 N
Tension on Cable AB is TAB = 336
N
Tension on Cable AC is TAC = 1111 N
Tension on Cable AB is TAB = 356
N
Tension on Cable AC is TAC = 2331 N
B С 35° 70° o 0 A o o O o
