3. AIS MVX, 6.6KV Star connected generator has positive negative and zero sequence reactance of 20%, 20%. and 10. respec

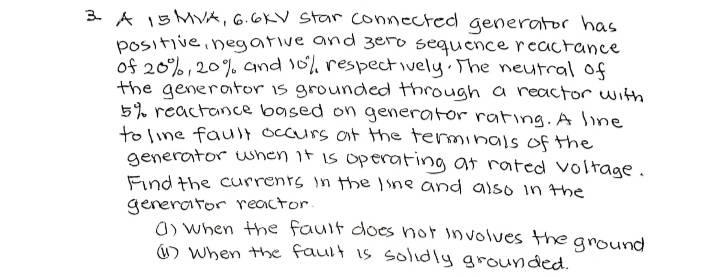

3. AIS MVX, 6.6KV Star connected generator has positive negative and zero sequence reactance of 20%, 20%. and 10. respect vely. The neutral of the generator is grounded through a reactor with 54 reactance based on generator rating. A line to line fault occurs at the terminals of the generator when it is operating at rated voltage. Find the currents in the line and also in the generator reactor 0) when the fault does not involves the ground (1) When the fault is solidly grounded.
