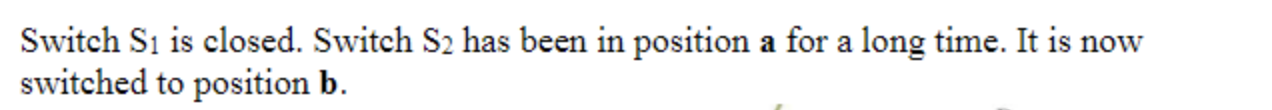

Switch Si is closed. Switch S2 has been in position a for a long time. It is now switched to position b.
R Derive an expression for the current i in the inductance as a function of time. Show all your work and box your answer. 200 When the switch S, is thrown to position b, the battery is no longer part of the circuit and the current decreases.
