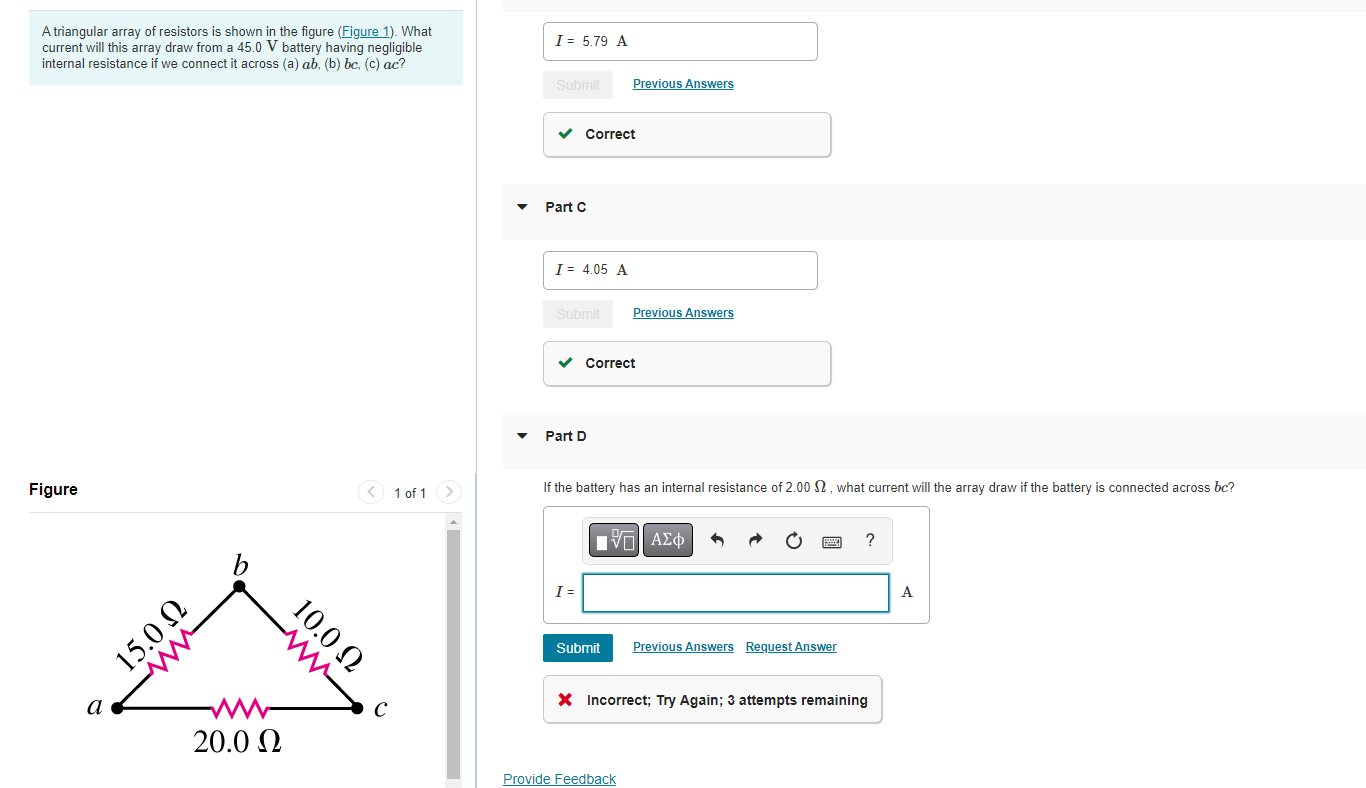

A triangular array of resistors is shown in the figure (Figure 1). What current will this array draw from a 45.0 V battery having negligible internal resistance if we connect it across (a) ab, (b) bc, (c) ac? I = 5.79 A Submit Previous Answers ✓ Correct Part C I = 4.05 A Submit Previous Answers ✓ Correct Part D Figure 1 of 1 If the battery has an internal resistance of 2.00 22 , what current will the array draw if the battery is connected across bc? ΙΙ ΑΣΦ ? I = A 15.0.12 Submit Previous Answers Request Answer ww 10.0.12 a X Incorrect; Try Again; 3 attempts remaining с 20.012 Provide Feedback
