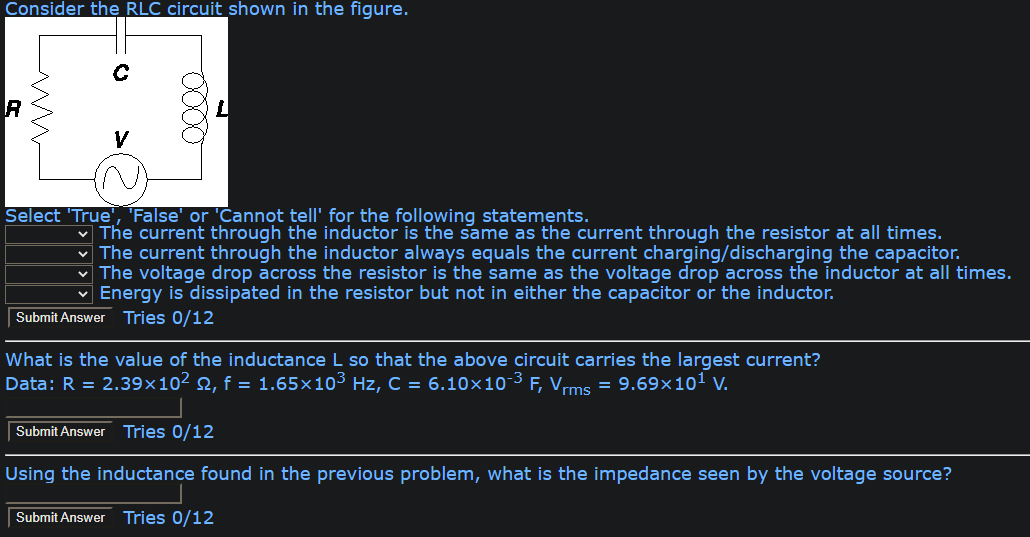

Consider the RLC circuit shown in the figure. w R V Select 'True, "False' or 'Cannot tell' for the following statements.

[answerhappygod]

Consider The Rlc Circuit Shown In The Figure W R V Select True False Or Cannot Tell For The Following Statements 1 (56.68 KiB) Viewed 61 times

Consider the RLC circuit shown in the figure. w R V Select 'True, "False' or 'Cannot tell' for the following statements. The current through the inductor is the same as the current through the resistor at all times. The current through the inductor always equals the current charging/discharging the capacitor. The voltage drop across the resistor is the same as the voltage drop across the inductor at all times. Energy is dissipated in the resistor but not in either the capacitor or the inductor. Submit Answer Tries 0/12 What is the value of the inductance L so that the above circuit carries the largest current? Data: R = 2.39x102 12, f = 1.65x103 Hz, C = 6.10x10-3 F, Vrms = 9.69x101 v. Submit Answer Tries 0/12 Using the inductance found in the previous problem, what is the impedance seen by the voltage source? Submit Answer Tries 0/12
