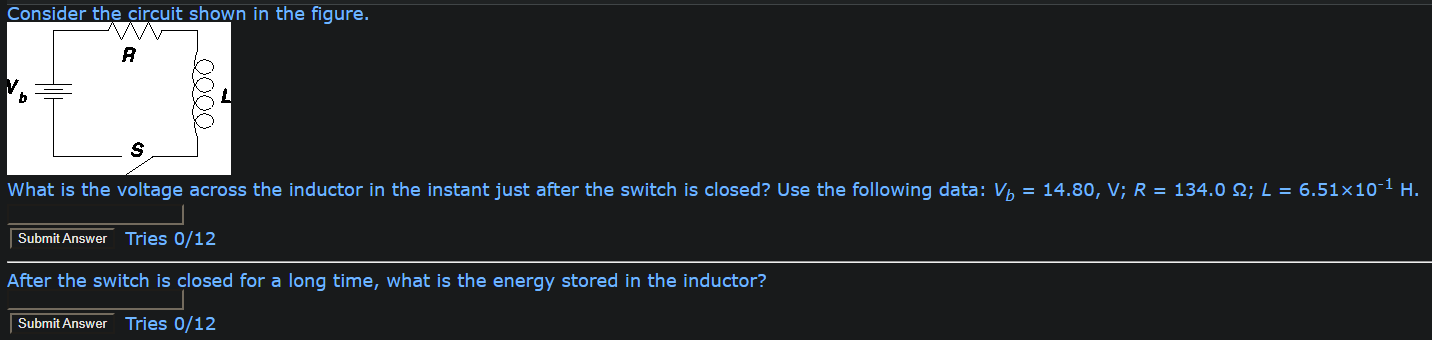

Consider The Circuit Shown In The Figure A S What Is The Voltage Across The Inductor In The Instant Just After The Swit 1 (26.14 KiB) Viewed 51 times
Please Include the proper units as well as circling the
answers
Consider the circuit shown in the figure. A S What is the voltage across the inductor in the instant just after the switch is closed? Use the following data: Vb = 14.80, V; R = 134.0 12; L = 6.51x10-1 H. Submit Answer Tries 0/12 After the switch is closed for a long time, what is the energy stored in the inductor? Submit Answer Tries 0/12
