a is 13 degrees
a is 13 degrees

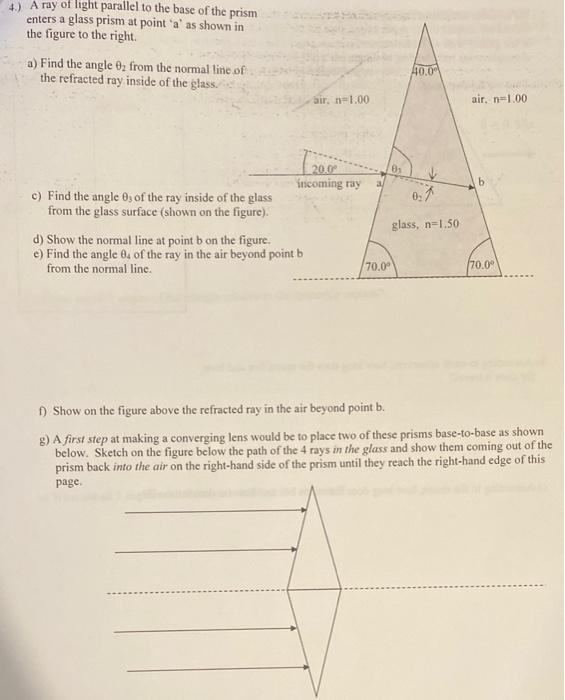

4.) A ray of light parallel to the base of the prism enters a glass prism at point 'a' as shown in the figure to the right a) Find the angle 02 from the normal line of the refracted ray inside of the glass. 40.0 bir n=1.00 air, n-|_00 vos b 037 incoming ray c) Find the angle 0of the ray inside of the glass from the glass surface (shown on the figure). d) Show the normal line at point b on the figure. e) Find the angle Os of the ray in the air beyond point b from the normal line glass, n=1.50 70.00 170.0° Show on the figure above the refracted ray in the air beyond point b. 8) A first step at making a converging lens would be to place two of these prisms base-to-base as shown below. Sketch on the figure below the path of the 4 rays in the glass and show them coming out of the prism back into the air on the right-hand side of the prism until they reach the right-hand edge of this page
4.) A ray of light parallel to the base of the prism enters a glass prism at point 'a' as shown in the figure to the right a) Find the angle 02 from the normal line of the refracted ray inside of the glass. 40.0 bir n=1.00 air, n-|_00 vos b 037 incoming ray c) Find the angle 0of the ray inside of the glass from the glass surface (shown on the figure). d) Show the normal line at point b on the figure. e) Find the angle Os of the ray in the air beyond point b from the normal line glass, n=1.50 70.00 170.0° Show on the figure above the refracted ray in the air beyond point b. 8) A first step at making a converging lens would be to place two of these prisms base-to-base as shown below. Sketch on the figure below the path of the 4 rays in the glass and show them coming out of the prism back into the air on the right-hand side of the prism until they reach the right-hand edge of this page
