Exercise 4 Three resistors are connected in parallel as shown in Figure. A potential difference of 18.0 V is maintained

Post by answerhappygod »

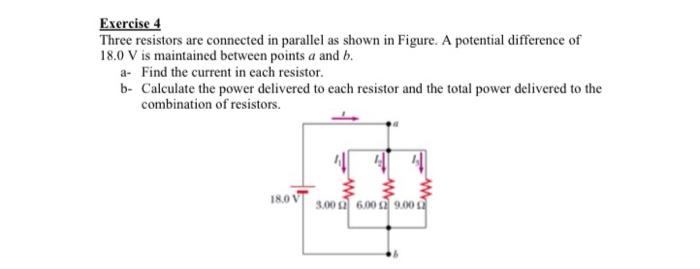

Exercise 4 Three Resistors Are Connected In Parallel As Shown In Figure A Potential Difference Of 18 0 V Is Maintained 1
Exercise 4 Three Resistors Are Connected In Parallel As Shown In Figure A Potential Difference Of 18 0 V Is Maintained 1 (15.74 KiB) Viewed 46 times
Exercise 4 Three resistors are connected in parallel as shown in Figure. A potential difference of 18.0 V is maintained between points a and b. a- Find the current in each resistor. b- Calculate the power delivered to each resistor and the total power delivered to the combination of resistors. 18.07 wa 3.00 6.00 09.00
