X X X X X X X X X final speed vi and range si A positively charged particle slides off a frictionless and smooth surface

[answerhappygod]

X X X X X X X X X Final Speed Vi And Range Si A Positively Charged Particle Slides Off A Frictionless And Smooth Surface 1 (83.58 KiB) Viewed 43 times

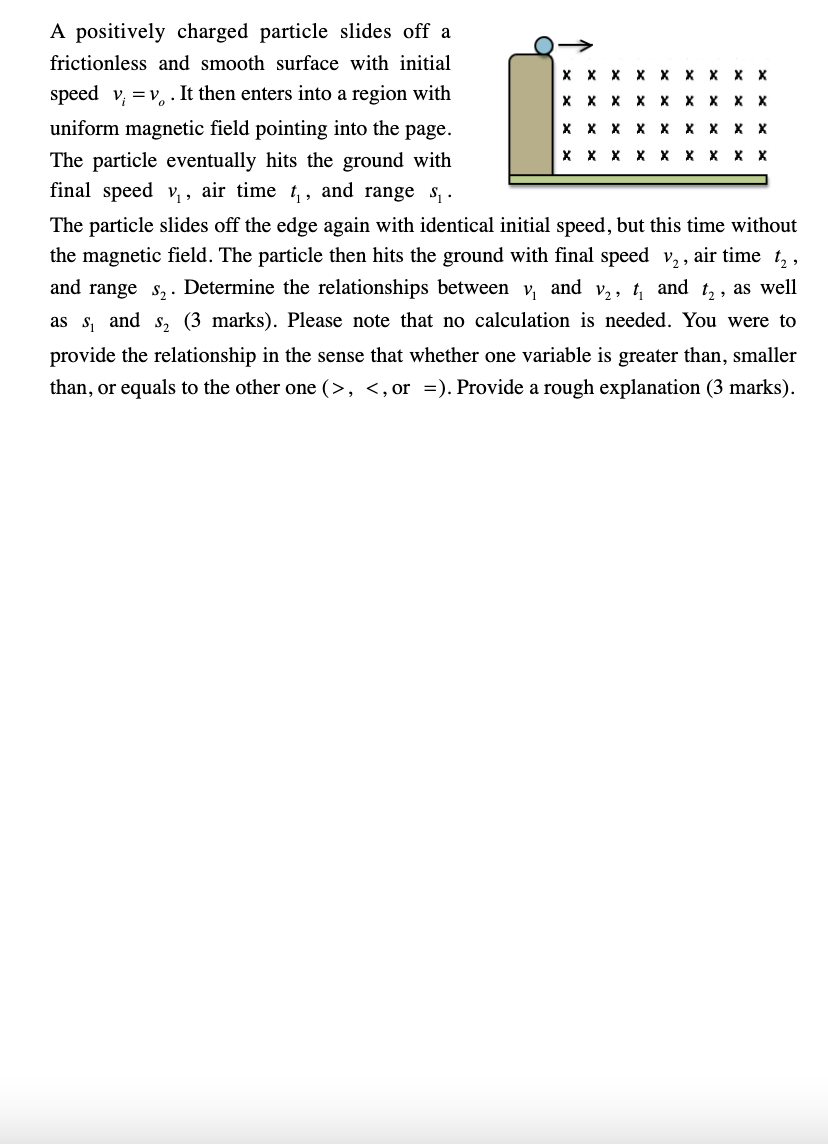

X X X X X X X X X final speed vi and range si A positively charged particle slides off a frictionless and smooth surface with initial speed v; = v. . It then enters into a region with x x x x x x x x x uniform magnetic field pointing into the page. | x x x x x x x x x The particle eventually hits the ground with X X X X X X X X X air time 11, The particle slides off the edge again with identical initial speed, but this time without the magnetic field. The particle then hits the ground with final speed v2, air time tą, and range sy. Determine the relationships between V, and v2, ty and ty, as well as sy and sz (3 marks). Please note that no calculation is needed. You were to provide the relationship in the sense that whether one variable is greater than, smaller than, or equals to the other one (>, <, or =). Provide a rough explanation (3 marks).
