w ww WW WW R2 R/ Four resistors, with R1 = 3.0 2, R2 = 7.0 2, R3 = 9.0 2, R4 = 12.0 2 are connected as shown in the figu

Post by answerhappygod »

W Ww Ww Ww R2 R Four Resistors With R1 3 0 2 R2 7 0 2 R3 9 0 2 R4 12 0 2 Are Connected As Shown In The Figu 1
W Ww Ww Ww R2 R Four Resistors With R1 3 0 2 R2 7 0 2 R3 9 0 2 R4 12 0 2 Are Connected As Shown In The Figu 1 (163 KiB) Viewed 66 times

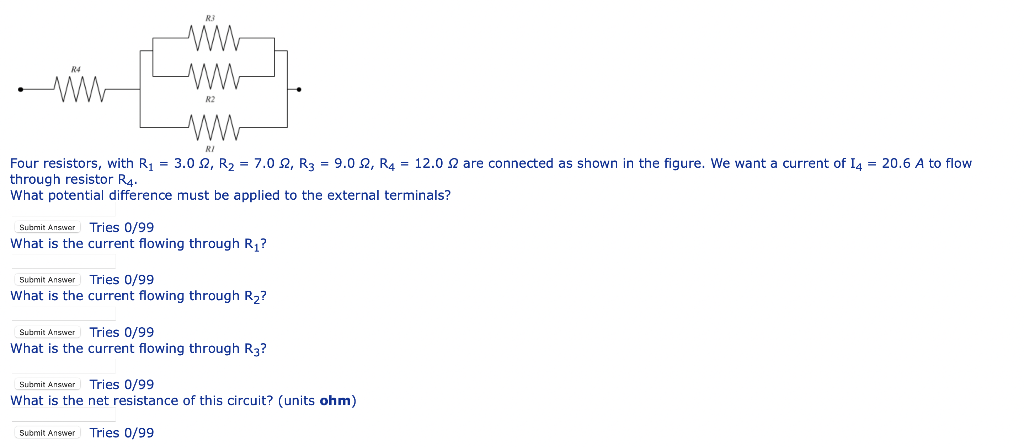

w ww WW WW R2 R/ Four resistors, with R1 = 3.0 2, R2 = 7.0 2, R3 = 9.0 2, R4 = 12.0 2 are connected as shown in the figure. We want a current of 14 = 20.6 A to flow through resistor R4. What potential difference must be applied to the external terminals? Submit Answer Tries 0/99 What is the current flowing through Ri? Submit Answer Tries 0/99 What is the current flowing through Rz? Submit Answer Tries 0/99 What is the current flowing through Rz? Submit Ansvar Tries 0/99 What is the net resistance of this circuit? (units ohm) Submit Answer Tries 0/99
