A parallel plate capacitor of area 1 cm2 is filled with three dielectrics with constants K1=4, K2=1.7 and K3=8.5. The di

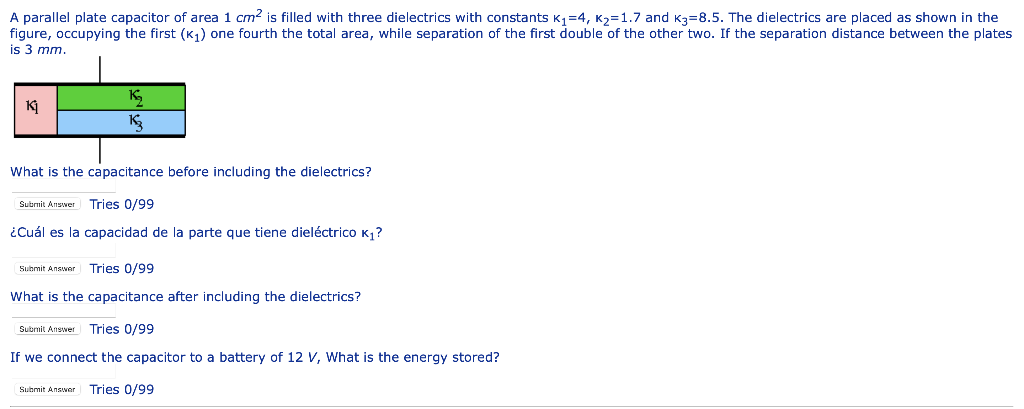

A parallel plate capacitor of area 1 cm2 is filled with three dielectrics with constants K1=4, K2=1.7 and K3=8.5. The dielectrics are placed as shown in the figure, occupying the first (K1) one fourth the total area, while separation of the first double of the other two. If the separation distance between the plates is 3 mm. K K 15 What is the capacitance before including the dielectrics? Sutrit Answer Tries 0/99 ¿Cuál es la capacidad de la parte que tiene dieléctrico Kı? Submit Answer Tries 0/99 What is the capacitance after including the dielectrics? Submit Answer Tries 0/99 If we connect the capacitor to a battery of 12 V, What is the energy stored? Submit Answer Tries 0/99
