An AC generator supplies an rms voltage of 110 V at 50.0 Hz. It is connected in series with a 0.450 H inductor, a 5.30 u

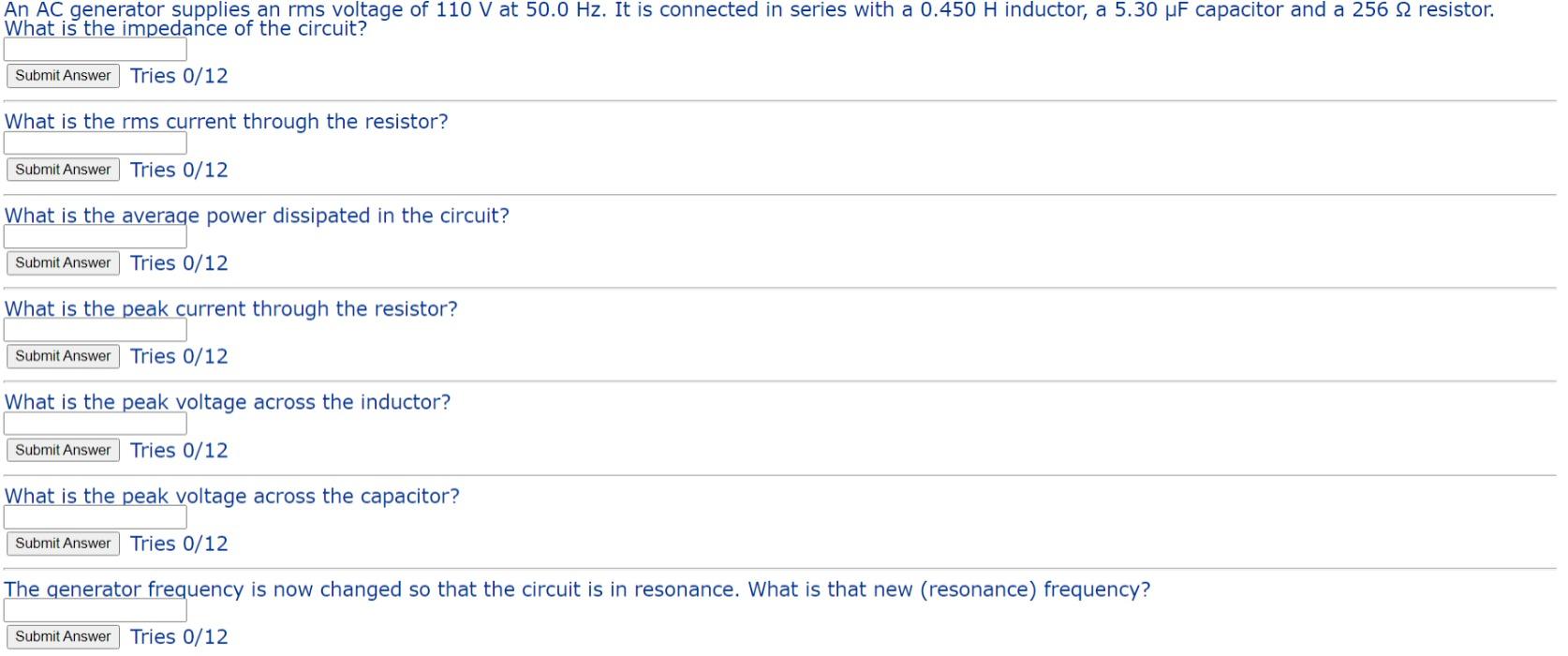

An AC generator supplies an rms voltage of 110 V at 50.0 Hz. It is connected in series with a 0.450 H inductor, a 5.30 uF capacitor and a 256 12 resistor. What is the impedance of the circuit? Submit Answer Tries 0/12 What is the rms current through the resistor? Submit Answer Tries 0/12 What is the average power dissipated in the circuit? Submit Answer Tries 0/12 What is the peak current through the resistor? Submit Answer Tries 0/12 What is the peak voltage across the inductor? Submit Answer Tries 0/12 What is the peak voltage across the capacitor? Submit Answer Tries 0/12 The generator frequency is now changed so that the circuit is in resonance. What is that new (resonance) frequency? Submit Answer Tries 0/12
