(i) (1) 4 R La (e) (b) (1) (c) 1/2 (11) 11 (11) 1/1 1 - 1 (d) (1) 1 1 1/1 (0) 1/1 D (15) R In circuit (1) above, the current I was measured as a function of the resistance R, for a single cell of emf ε and internal resistancer. In circuit (ii) above, the current I was measured as a function of the resistance R, for two identical cells, each of emf a and internal resistance r, connected in series. Which of the graphs above correctly shows the dependence of 1/1 vs R for the two cases?

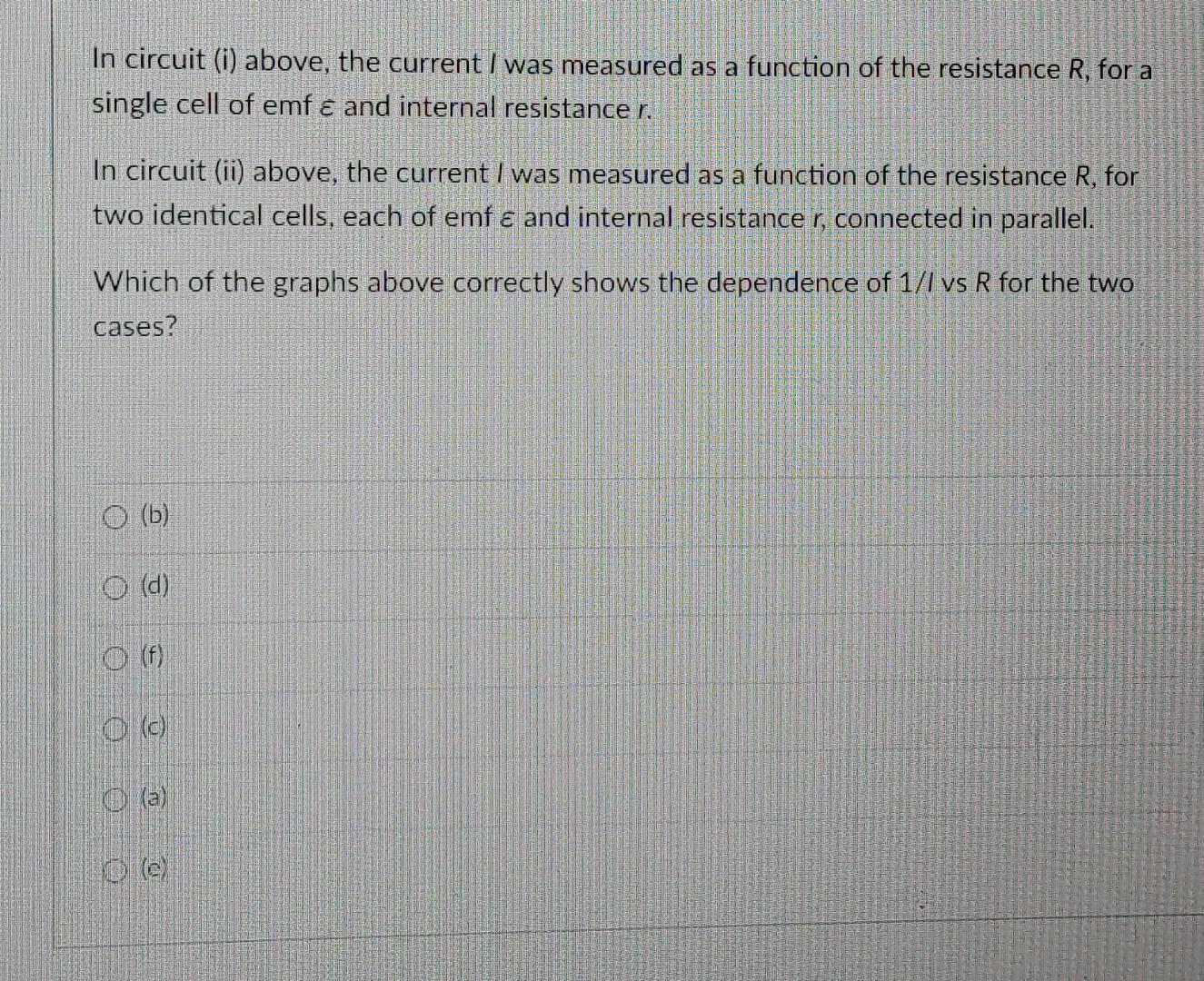

In circuit (1) above, the current I was measured as a function of the resistance R, for a single cell of emf ε and internal resistance r. In circuit (ii) above, the current I was measured as a function of the resistance R, for two identical cells, each of emf ε and internal resistance r, connected in parallel. Which of the graphs above correctly shows the dependence of 1/1 vs R for the two cases? O (6) (d) O (f) 0 (0) 0 (a) (c)
