ohm's law lab report need help finding slope and % error from graphs and answering 3 question provided at end. pic of qu

[answerhappygod]

ohm's law lab report need help finding slope and % error from
graphs
and answering 3 question provided at end.
pic of questions will be provided

Ohm S Law Lab Report Need Help Finding Slope And Error From Graphs And Answering 3 Question Provided At End Pic Of Qu 1 (83.06 KiB) Viewed 40 times

Ohm S Law Lab Report Need Help Finding Slope And Error From Graphs And Answering 3 Question Provided At End Pic Of Qu 2 (20.78 KiB) Viewed 40 times

Ohm S Law Lab Report Need Help Finding Slope And Error From Graphs And Answering 3 Question Provided At End Pic Of Qu 3 (16.19 KiB) Viewed 40 times

Ohm S Law Lab Report Need Help Finding Slope And Error From Graphs And Answering 3 Question Provided At End Pic Of Qu 4 (29.26 KiB) Viewed 40 times

Ohm S Law Lab Report Need Help Finding Slope And Error From Graphs And Answering 3 Question Provided At End Pic Of Qu 5 (20.32 KiB) Viewed 40 times

Ohm S Law Lab Report Need Help Finding Slope And Error From Graphs And Answering 3 Question Provided At End Pic Of Qu 6 (40.02 KiB) Viewed 40 times

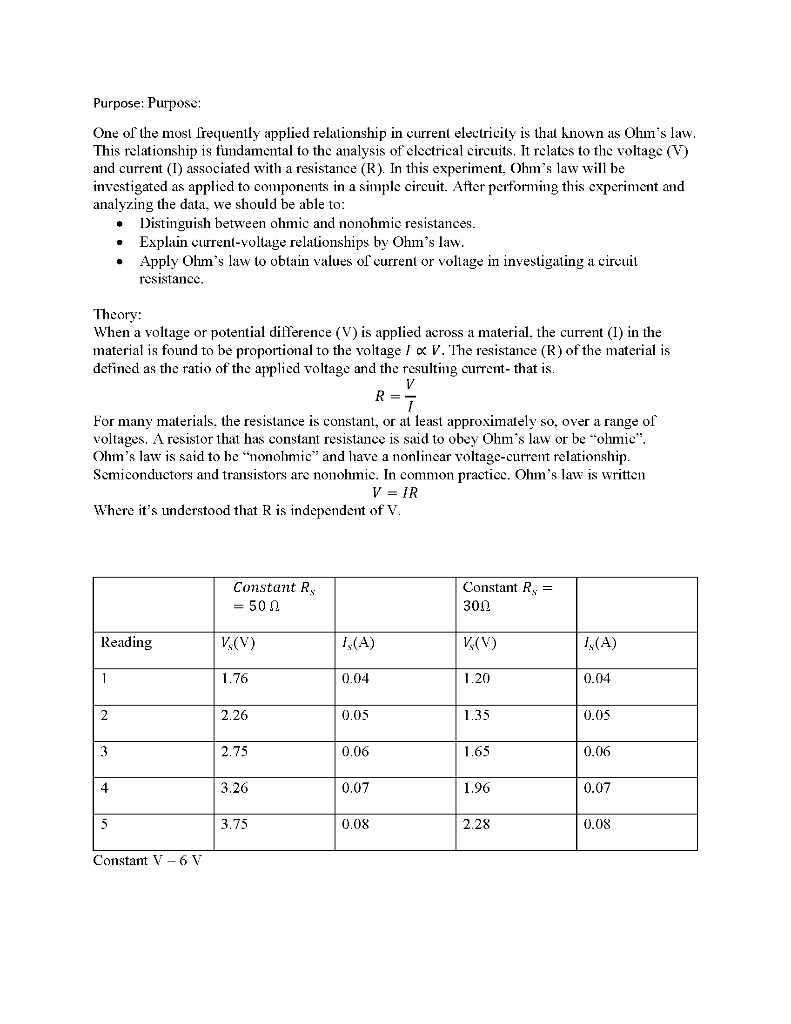

Purpose: Purpose: One of the most frequently applied relationship in current electricity is that known as Ohm's law. This relationship is fundamental to the analysis of clectrical circuits. It relates to the voltage (V) and current (I) associated with a resistance (R). In this experiment, Ohm's law will be investigated as applied to components in a simple circuit. After performing this experiment and analyzing the data, we should be able to: Distinguish between ohmic and nonohmic resistances. Explain current-voltage relationships by Ohm's law. Apply Olim's law to obtain values of current or voltage in investigating a circuit resistance. . Theory: When a voltage or potential difference (V) is applied across a material, the current (I) in the material is found to be proportional to the voltage I V. The resistance (R) of the material is defined as the ratio of the applied voltage and the resulting current- that is. R= For many materials, the resistance is constant, or at least approximately so, over a range of voltages. A resistor that has constant resistance is said to obey Ohm's law or be "ohmic". Ohm's law is said to be “nonolmic" and have a nonlinear voltage-current relationship. Semiconductors and transistors are nonohmic. In common practice. Ohm's law is written V = IR Where it's understood that R is independent of V. Constant Ry = 5012 Constant Ry = 300 Reading V.(V) 1 (A) 1 (A) 1 1.76 0.04 1.20 0.04 2 2.26 0.05 1.35 0.05 3 2.75 0.06 1.65 0.06 4 3.26 0.07 1.96 0.07 5 3.75 0.08 2.28 0.08 Constant V 6 V

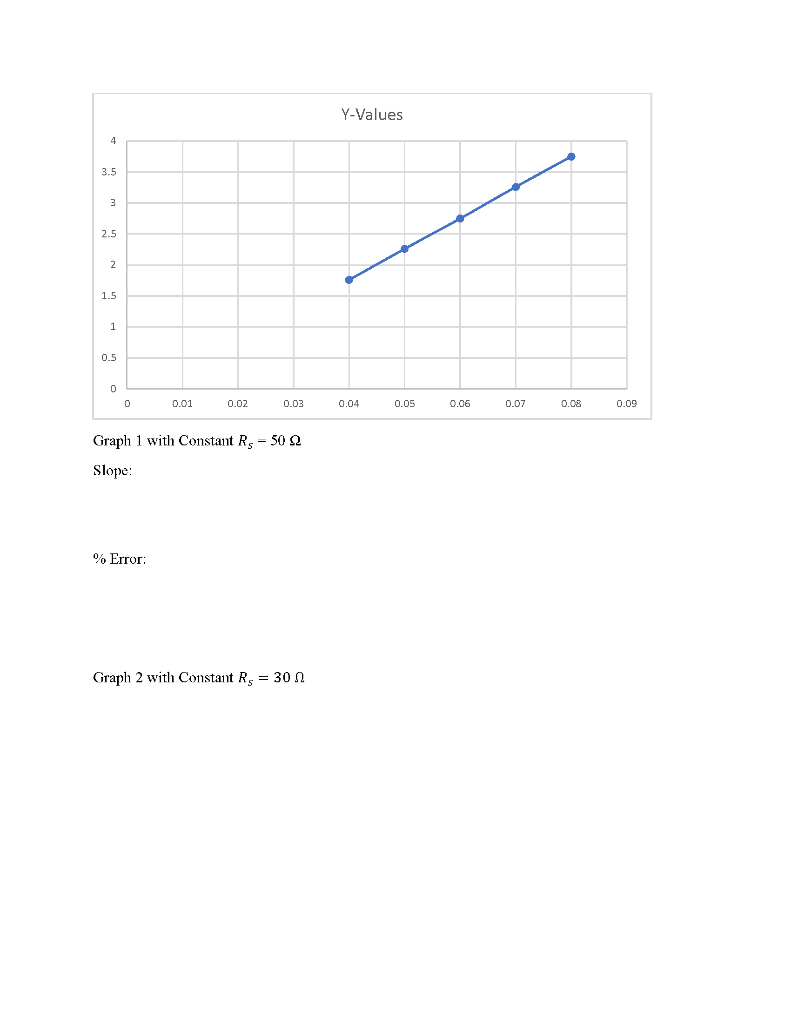

Y-Values 4 3.5 3 2.5 2 1.5 1 0.5 0 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 Graph 1 with Constant Rs = 50 2 Slope: % Error: Graph 2 with Constant Rs = 30

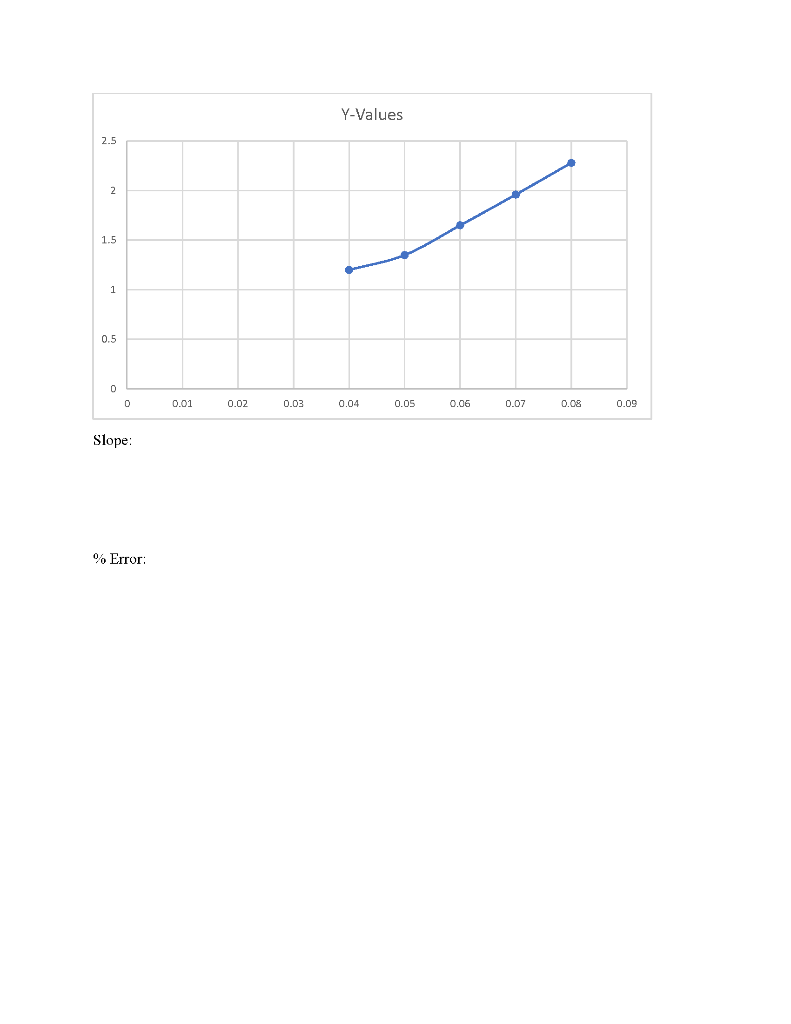

Y-Values 2.5 2 1.5 1 0.5 0 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 Slope: % Error:

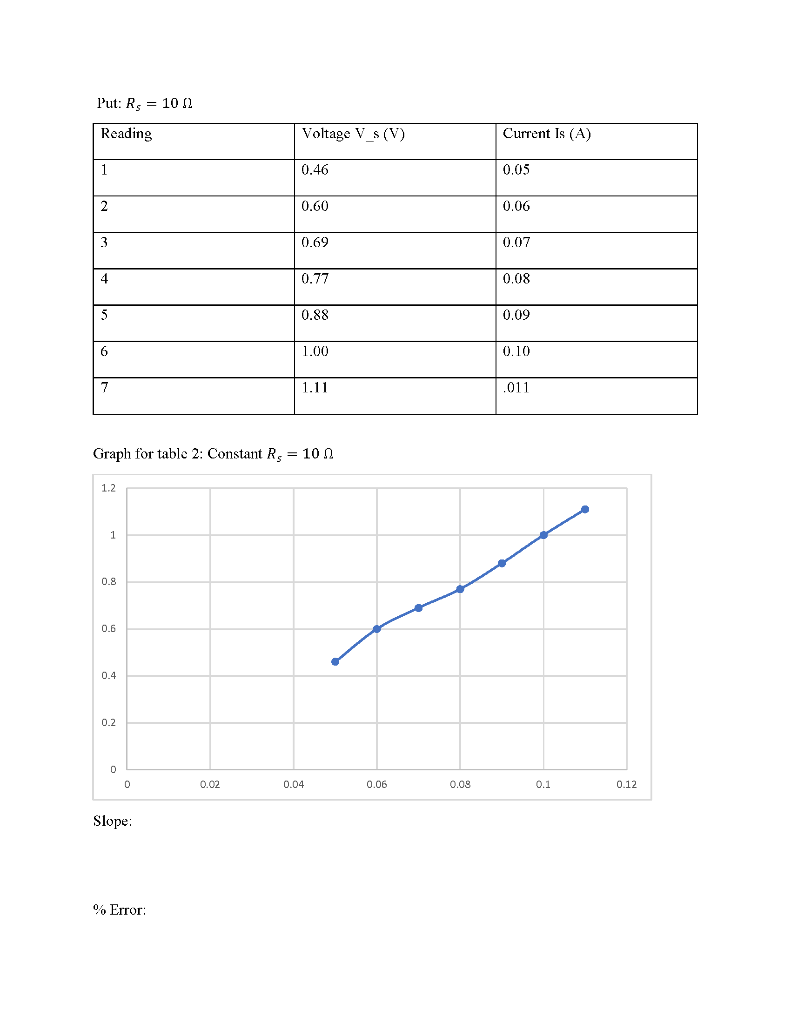

Put: Rs = 10 12 Reading Voltage V_s(V) Current Is (A) 1 0.46 0.05 2 0.60 0.06 3 0.69 0.07 4 0.77 0.08 S 0.88 0.09 6 1.00 0.10 7 1.11 .011 Graph for tablc 2: Constant Rs = 10 1.2 1 0.8 0.6 0.4 0.2 0 0 0.02 0.04 0.06 0.09 0.1 0.12 Slope: % Error:

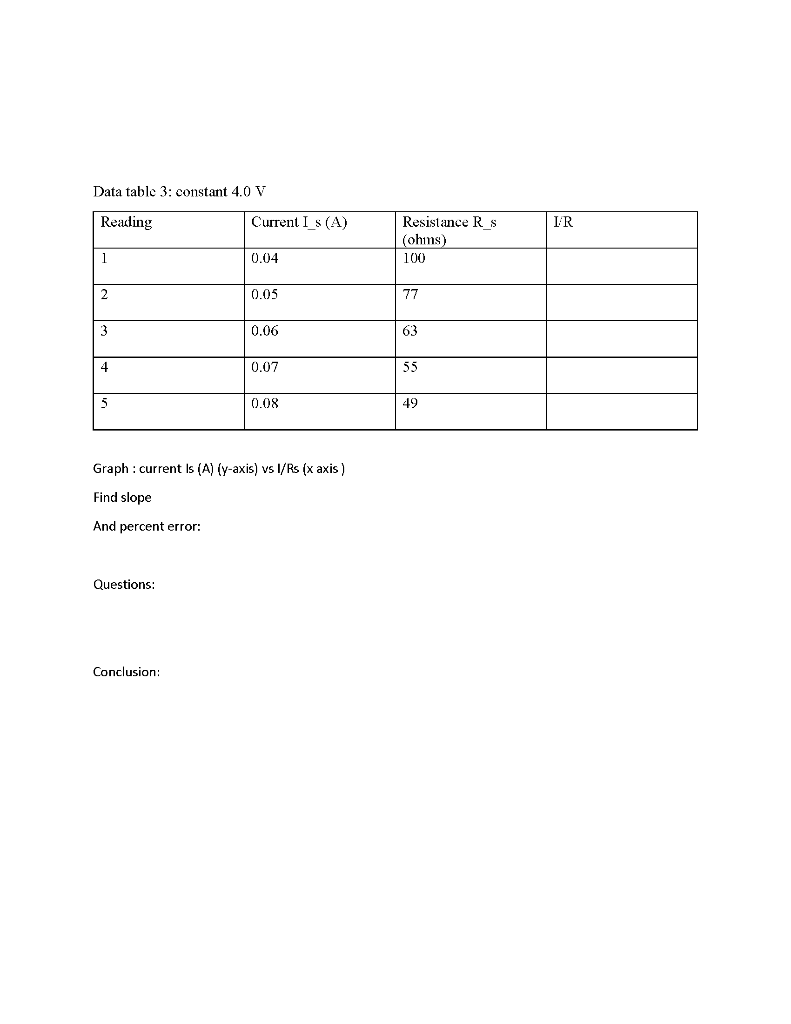

Data table 3: constant 4.0 V Reading Current I s (A) IR Resistance RS (ohms) 100 1 0.04 2 0.05 77 3 0.06 63 4 0.07 55 5 0.08 49 Graph: current Is (A) (y-axis) vs I/RS (x axis) Find slope And percent error: Questions: Conclusion:

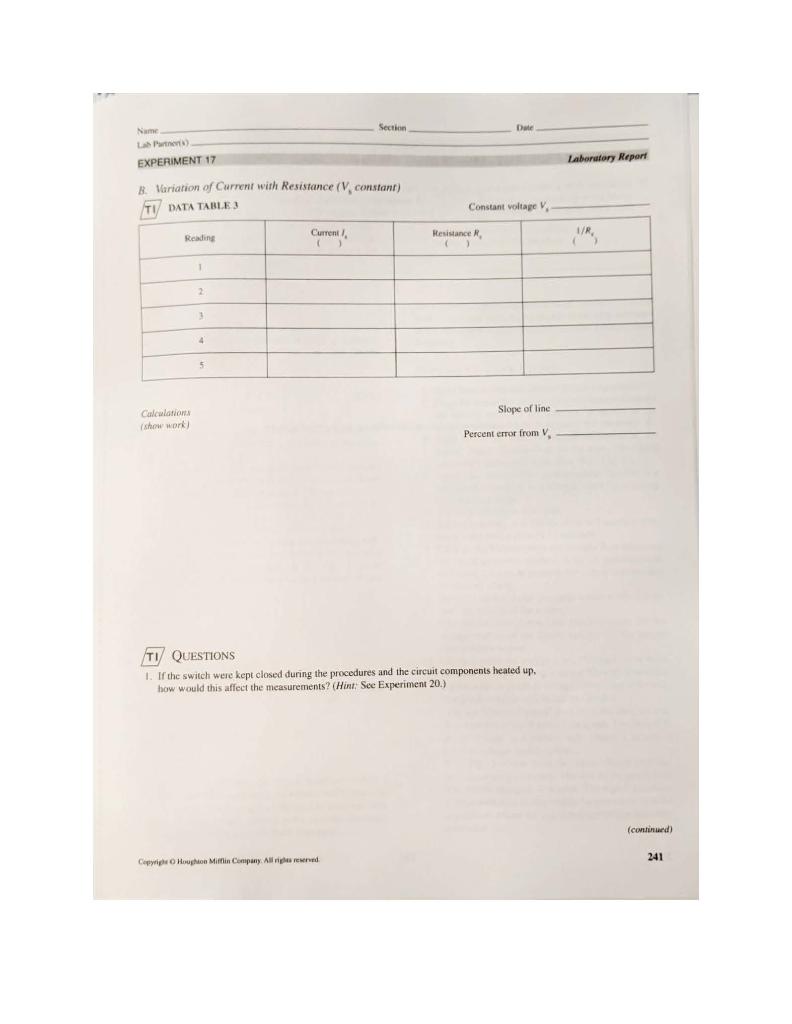

Dale Laboratory Report Name Section LP EXPERIMENT 17 Variation of Current with Resistance (V, constant) TI DATA TABLE Constant voltage Reading Current Resistance 2 4 5 Slope of line Calculations show work) Percent error from V TI QUESTIONS 1. If the switch were kept closed during the procedures and the circuit components heated up, how would this affect the measurements? (Hint: See Experiment 20.) (continued) 241 Cep Houghton Mifflin Company Allen

Laboratory Report EXPERIMENT 17 2. Devise and draw a circuit using a long, straight wire resistor instead of a decade box that would allow the study of the variation of voliage with resistance (1,constant). According tº Ohm's law, what would a graph of the data from this circuit show? 3. Compute the values of , and the voltage drops across this resistance for the two situations in TI Data Table 1. reading 242 Copyrighe Houghton Mifflin Company. All rights reserved
