Consider the circuit from the Lab 4 HW, shown at right (If you haven't already completed Lab 4 HW, it is recommended tha

Post by answerhappygod »

Consider The Circuit From The Lab 4 Hw Shown At Right If You Haven T Already Completed Lab 4 Hw It Is Recommended Tha 1
Consider The Circuit From The Lab 4 Hw Shown At Right If You Haven T Already Completed Lab 4 Hw It Is Recommended Tha 1 (31.18 KiB) Viewed 46 times

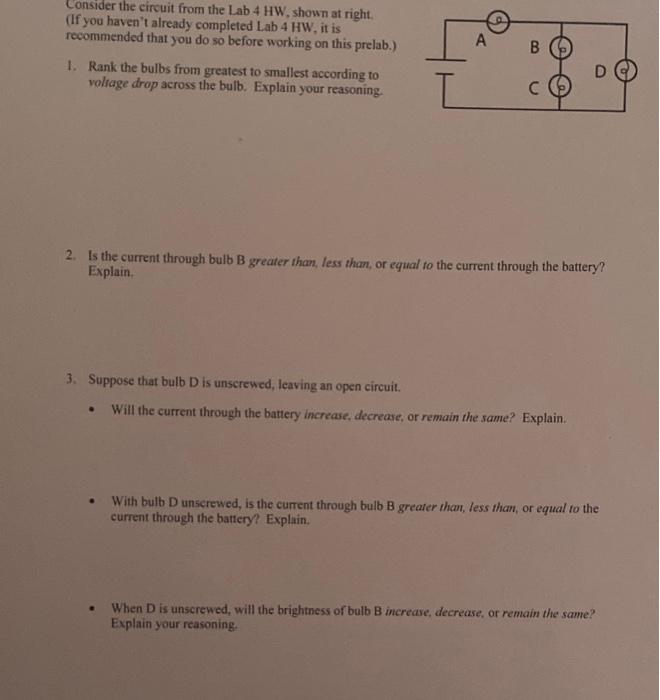

Consider the circuit from the Lab 4 HW, shown at right (If you haven't already completed Lab 4 HW, it is recommended that you do so before working on this prelab.) A В 1. Rank the bulbs from greatest to smallest according to voltage drop across the bulb. Explain your reasoning. D I C 2. Is the current through bulb B greater than, less than or equal to the current through the battery? Explain 3. Suppose that bulb D is unscrewed, leaving an open circuit. Will the current through the battery increase, decrease, or remain the same? Explain. . With bulb Dunscrewed, is the current through bulb B greater than, less than or equal to the current through the battery? Explain. • When D is unscrewed, will the brightness of bulb B increase, decrease, or remain the same? Explain your reasoning
