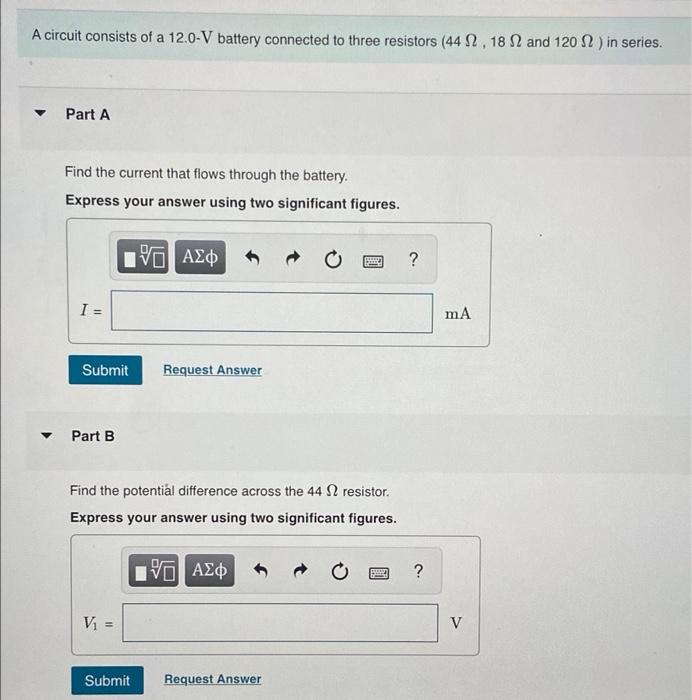

A circuit consists of a 12.0-V battery connected to three resistors (44 S2 , 18 2 and 120 32 ) in series. Part A Find the current that flows through the battery. Express your answer using two significant figures. ΟΙ ΑΣΦ ? I = mA Submit Request Answer Part B Find the potential difference across the 44 S2 resistor. Express your answer using two significant figures. ΟΙ ΑΣφ ? Vi = V Submit Request Answer

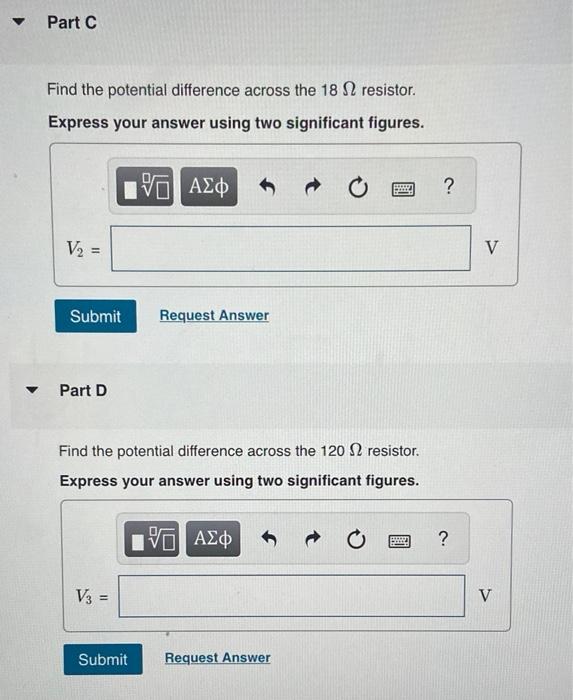

Part C Find the potential difference across the 18 N resistor. Express your answer using two significant figures. ΙΙ ΑΣΦ ceeee 1 ? V2 = V Submit Request Answer Part D Find the potential difference across the 120 12 resistor. Express your answer using two significant figures. ΟΙ ΑΣφ ? V3 V Submit Request Answer
