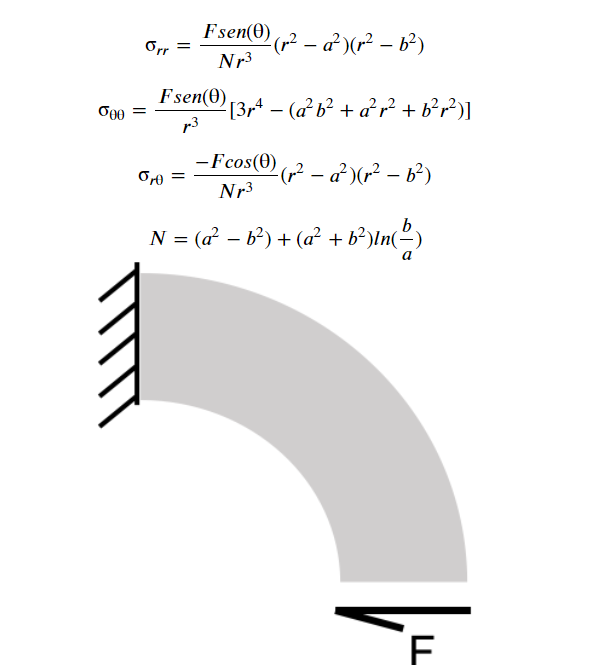

The stress field for the curved beam subjected to the end load F
is given by:

The Stress Field For The Curved Beam Subjected To The End Load F Is Given By Assuming A Load F 1 0 Internal Radius A 1 1 (31.17 KiB) Viewed 61 times

Assuming a load 𝐹=1.0, internal radius 𝑎=1.0 , external radius
𝑏=1.5:
>Plot the distribution of the stresses 𝜎𝑟𝑟 , 𝜎𝜃𝜃 and 𝜏𝑟𝜃 over
the domain of the beam.
>Plot the maximum normal and shear stresses in the domain of
the beam. where are the maximum values presented?
Fsen(0) (2 – d?)(? – 62) Orr Nr3 000 Fsen(0) [3r4 – (a+b+ + a?r? + b?r?)] r3 – Fcos(0) (2 – 2?)(? – b?) 0,0 = Nr3 N = (a? – 62) + (a? +62)in = E
