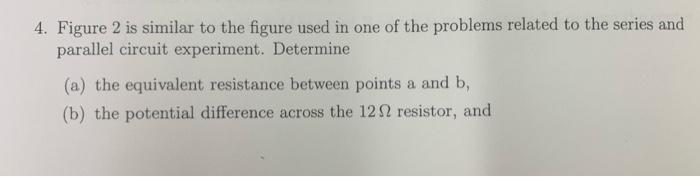

4. Figure 2 is similar to the figure used in one of the problems related to the series and parallel circuit experiment. Determine (a) the equivalent resistance between points a and b, (b) the potential difference across the 12 resistor, and

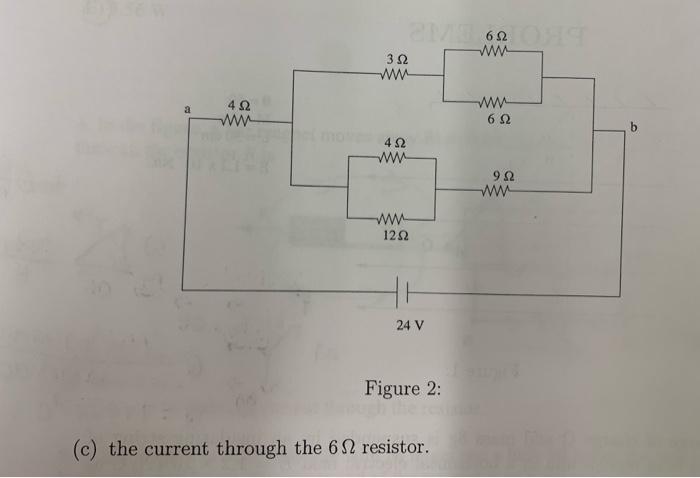

6 Ω ΛΑ- 3 Ω ΛΑ- a 4 Ω ΜΑ 6Ω b 4 Ω Α. 9Ω -- 12Ω 24V Figure 2: (c) the current through the 6Ω resistor.
