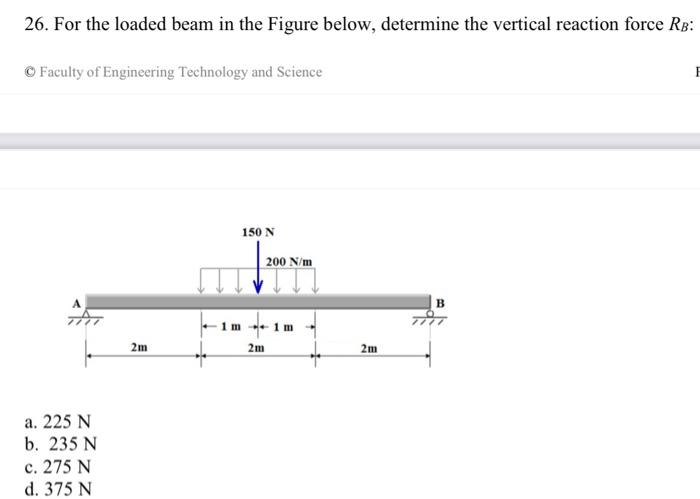

26. For the loaded beam in the Figure below, determine the vertical reaction force Rs: © Faculty of Engineering Technology and Science F 150 N 200 N/m B А सा m 1 m 2m 2m 2m a. 225 N b. 235 N c. 275 N d. 375 N

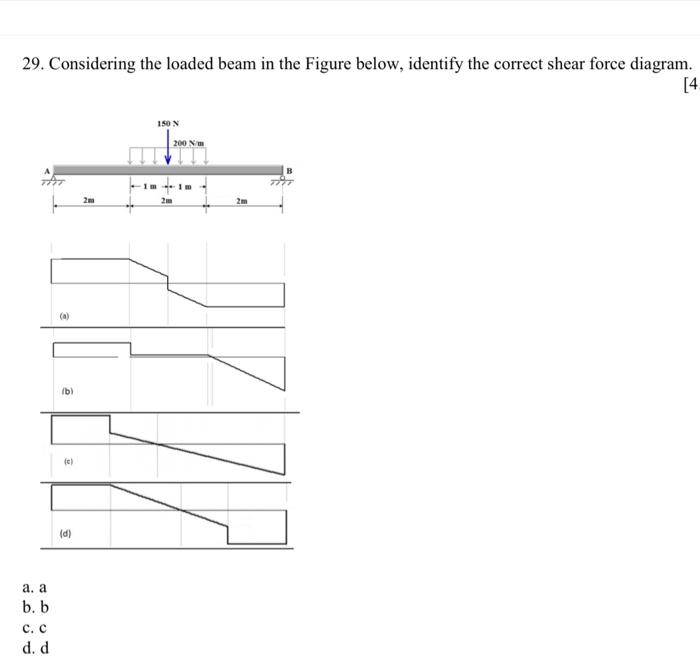

29. Considering the loaded beam in the Figure below, identify the correct shear force diagram. [4 150N 200 Nm (a) ib) (d) a. a b.b c. C d. d
