A series RLC circuit has R = 15.0 2, L = 25.0 mH, and C = 30.0 uF. The circuit is connected to a 120 V (rms) source with

Post by answerhappygod »

A Series Rlc Circuit Has R 15 0 2 L 25 0 Mh And C 30 0 Uf The Circuit Is Connected To A 120 V Rms Source With 1

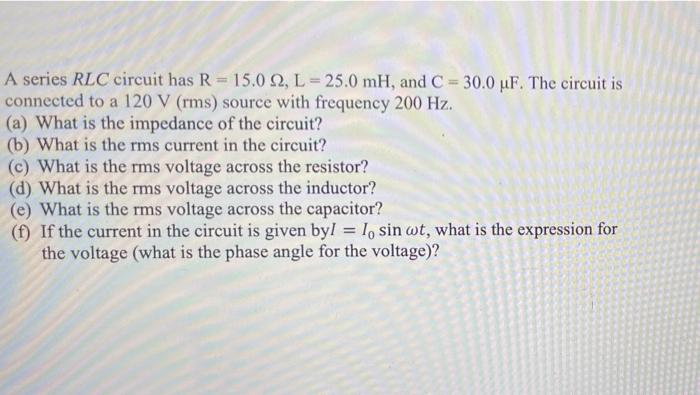

A Series Rlc Circuit Has R 15 0 2 L 25 0 Mh And C 30 0 Uf The Circuit Is Connected To A 120 V Rms Source With 1 (41.5 KiB) Viewed 48 times
A series RLC circuit has R = 15.0 2, L = 25.0 mH, and C = 30.0 uF. The circuit is connected to a 120 V (rms) source with frequency 200 Hz. (a) What is the impedance of the circuit? (b) What is the rms current in the circuit? (c) What is the rms voltage across the resistor? (d) What is the rms voltage across the inductor? (e) What is the rms voltage across the capacitor? (f) If the current in the circuit is given byl = 10 sin wt, what is the expression for the voltage (what is the phase angle for the voltage)?
