INSTRUCTION: Determine the deflections using Method of Consistent Deformation. Show the complete solution. Problem 1. Gi

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

INSTRUCTION: Determine the deflections using Method of Consistent Deformation. Show the complete solution. Problem 1. Gi

Post by answerhappygod »

Instruction Determine The Deflections Using Method Of Consistent Deformation Show The Complete Solution Problem 1 Gi 1
Instruction Determine The Deflections Using Method Of Consistent Deformation Show The Complete Solution Problem 1 Gi 1 (68.17 KiB) Viewed 74 times

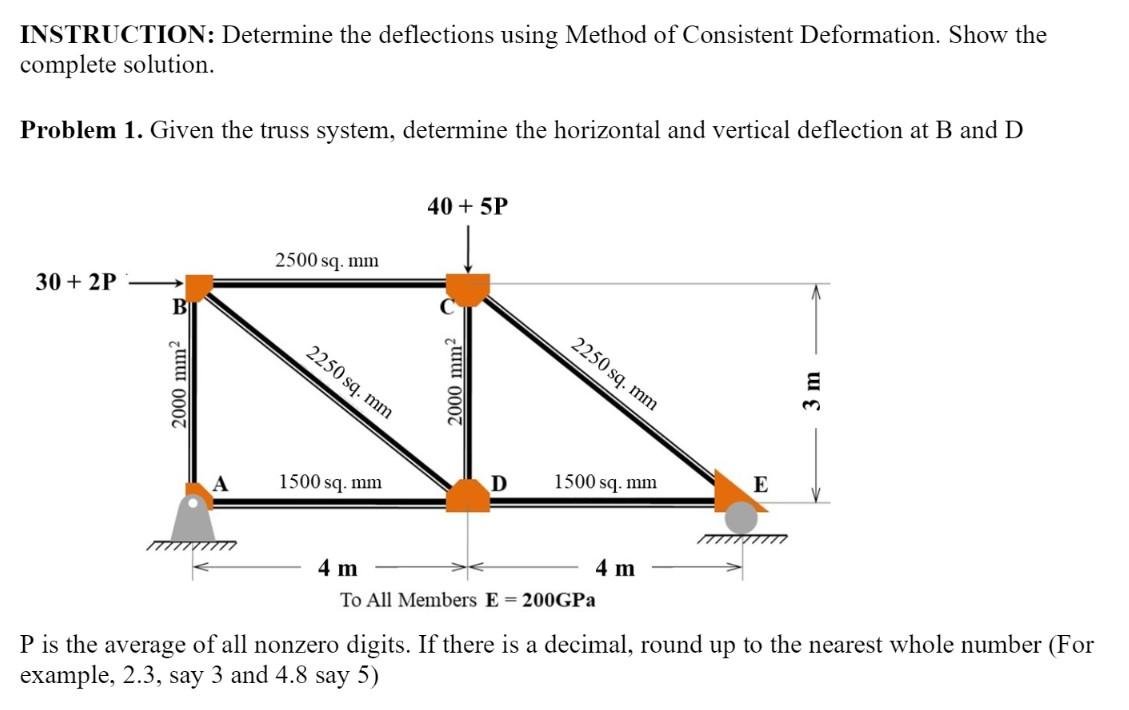

INSTRUCTION: Determine the deflections using Method of Consistent Deformation. Show the complete solution. Problem 1. Given the truss system, determine the horizontal and vertical deflection at B and D 40 + 5P 2500 sq.mm 30 + 2P B 2250 sq.mm 2250 sq.mm 2000 mm 2000 mm E 1500 sq.mm D 1500 sq.mm E ITTTTTTTTT 4 m 4 m To All Members E= 200GPa P is the average of all nonzero digits. If there is a decimal, round up to the nearest whole number (For example, 2.3, say 3 and 4.8 say 5)
