P6.3 The inflow to a liquid level system changes after 8 min from 0 m3/min to 9:(t) = 20 m/min The liquid level system h

Post by answerhappygod »

P6 3 The Inflow To A Liquid Level System Changes After 8 Min From 0 M3 Min To 9 T 20 M Min The Liquid Level System H 1
P6 3 The Inflow To A Liquid Level System Changes After 8 Min From 0 M3 Min To 9 T 20 M Min The Liquid Level System H 1 (30.59 KiB) Viewed 59 times

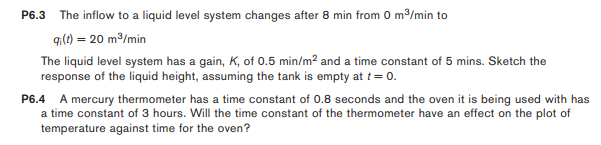

P6.3 The inflow to a liquid level system changes after 8 min from 0 m3/min to 9:(t) = 20 m/min The liquid level system has a gain, K of 0.5 min/m2 and a time constant of 5 mins. Sketch the response of the liquid height, assuming the tank is empty at t=0. P6.4 A mercury thermometer has a time constant of 0.8 seconds and the oven it is being used with has a time constant of 3 hours. Will the time constant of the thermometer have an effect on the plot of temperature against time for the oven?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
