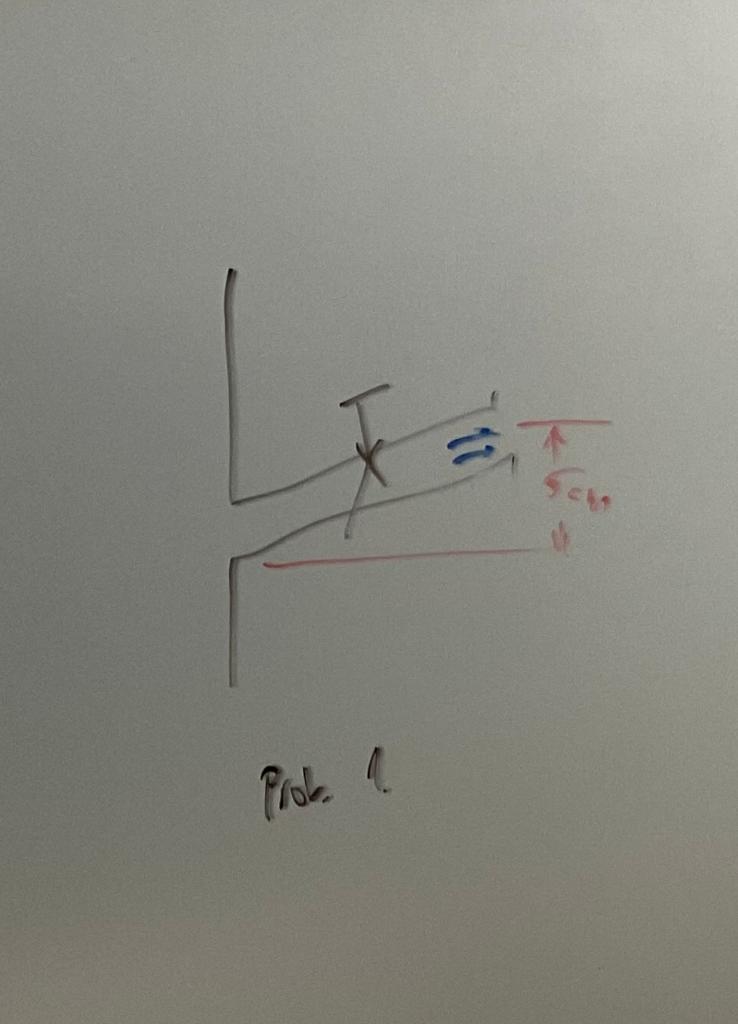

In the deposit shown, the fluid is water and flows through a
pipe. The diameter
It's 1.27 cm. There is a valve in the pipe. The pipe is inclined
and goes up 5
Cm before going out as a free jet. The pressure with which the
water comes out of the
The deposit is 10,000 Pa. The speed is 2 m/sec. The part can be
despised.
Line of the pipe as well as the values of K at the inlet and
outlet. To find
In The Deposit Shown The Fluid Is Water And Flows Through A Pipe The Diameter It S 1 27 Cm There Is A Valve In The Pi 1 (51.83 KiB) Viewed 90 times
F 110 Son Prob.
